SUN HYDRAULICS
CXADLAV
$40.30 USD
Tags:
- SUN HYDRAULICS
- Material:CXADLAV
- Model:CXAD-LAV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CXADLAV (CXADLAV) is a high-performance hydraulic check valve designed for efficient fluid control in various hydraulic systems. This model features a free flow from the inlet port 2 to the outlet port 1, allowing fluid to pass freely in one direction while blocking it in the reverse, ensuring optimal operation and preventing potential damage from flow reversal. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 7.5 gpm (30 L/min), the CXADLAV is equipped to handle demanding applications. The valve is distinguished by its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), thereby minimizing fluid loss and maintaining system integrity. It is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), providing versatility for different system requirements. Furthermore, the CXADLAV incorporates Sun\u2019s floating style construction which minimizes internal part binding due to excessive installation torque or cavity/cartridge machining variations. Designed with a T-16A cavity and utilizing Viton seals for enhanced durability and performance under varied conditions, this check valve ensures reliable operation even in harsh environments. The model also supports easy installation with a specified torque range of 20 - 25 lbf ft (27 - 33 Nm) and has a compact weight of .20 lb (0.10 kg), facilitating integration into existing systems without significant modifications. Additionally, this model serves as a circuit saver for systems with incorrect manifold drillings by providing an alternative flow path configuration that can compensate for such errors without compromising on efficiency or performance.
The Sun Hydraulics CXADLAV (CXADLAV) is a high-performance hydraulic check valve designed for efficient fluid control in various hydraulic systems. This model features a free flow from the inlet port 2 to the outlet port 1, allowing fluid to pass freely in one direction while blocking it in the reverse, ensuring optimal operation and preventing potential damage from flow reversal. With a maximum operating pressure of 5000 psi (350 bar) and a flow capacity of 7.5 gpm (30 L/min), the CXADLAV is equipped to handle demanding applications. The valve is distinguished by its extremely low leakage rate, which does not exceed 1 drop per minute (0.07 cc/min), thereby minimizing fluid loss and maintaining system integrity. It is available with cracking pressures of 4, 30, and 75 psi (0.3, 2, and 5 bar), providing versatility for different system requirements. Furthermore, the CXADLAV incorporates Sun\u2019s floating style construction which minimizes internal part binding due to excessive installation torque or cavity/cartridge machining variations. Designed with a T-16A cavity and utilizing Viton seals for enhanced durability and performance under varied conditions, this check valve ensures reliable operation even in harsh environments. The model also supports easy installation with a specified torque range of 20 - 25 lbf ft (27 - 33 Nm) and has a compact weight of .20 lb (0.10 kg), facilitating integration into existing systems without significant modifications. Additionally, this model serves as a circuit saver for systems with incorrect manifold drillings by providing an alternative flow path configuration that can compensate for such errors without compromising on efficiency or performance.

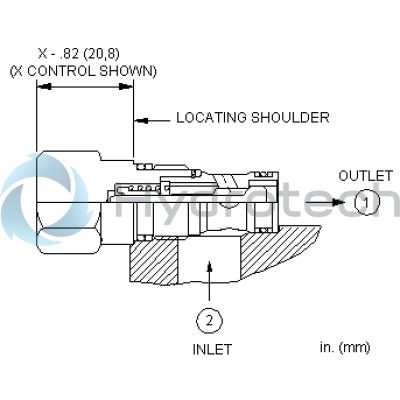

Free-flow, side-to-nose check valves are on/off circuit components that allow free flow from the inlet (port 2) to the outlet (port 1) and block flow in the opposite direction.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- These check valves are considered circuit savers for existing circuits where manifold drillings are incorrect. The capacity of side-to-nose (port 2 to port 1) 2-port check valves is approximately 30% less than preferred models with a nose-to-side (port 1 to port 2) flow path.
- Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Only available with 4, 30 and 75 psi (0,3, 2 and 5 bar) cracking pressures.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-162A |
| Series | 0 |
| Capacity | 7.5 gpm30 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 1 drops/min.0,07 cc/min. |
| Valve Hex Size | 3/4 in.19,1 mm |
| Valve Installation Torque | 20 - 25 lbf ft27 - 33 Nm |
| Model Weight | .20 lb0,10 kg |
| Seal kit - Cartridge | Viton: 990-162-006 |
