SUN HYDRAULICS
CHECK CARTRIDGE
CXAAXBN


$30.60
  • SUN HYDRAULICS
  • Material:CXAAXBN
  • Model:CXAA-XBN
  • Summary:Cartridge

Quantity in stock: 9

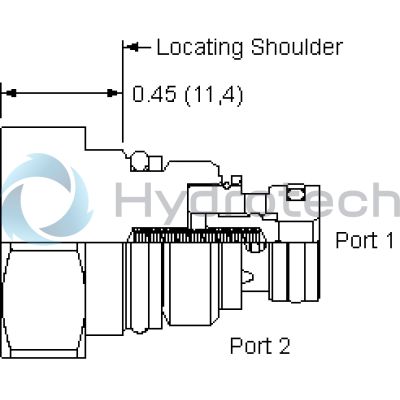

Free-flow, nose-to-side check valves are on/off circuit components that allow free flow from the inlet (port 1) to the outlet (port 2) and block flow in the opposite direction.

  • Check valves offer extremely low leakage rates with a maximum leakage of less than 1 drop per minute (0,07 cc/min).
  • Will accept 5000 psi (350 bar) at ports 1 and 2.
  • Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
  • Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity T-8A
Series P
Capacity 5 gpm20 L/min.
Valve Hex Size 7/8 in.22,2 mm
Valve Installation Torque 20 - 25 lbf ft27 - 33 Nm
Model Weight .10 lb0,5 kg
Seal kit - Cartridge Viton: 990-608-006
