SUN HYDRAULICS
CSAXAXN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

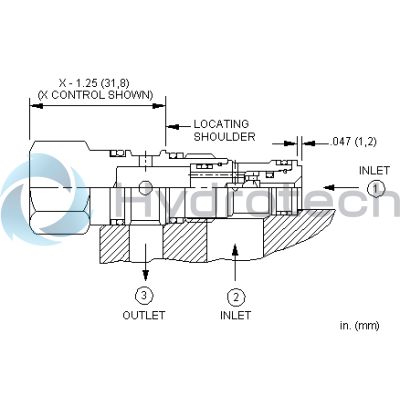

The Sun Hydraulics CSAXAXN (CSAXAXN) is a meticulously engineered single ball shuttle valve designed to connect the higher of two work ports to the signal or common port, with the signal being sensed at port 3. This valve is particularly noted for its robust construction featuring hardened steel balls and seats, which not only enhance wear characteristics but also offer commendable tolerance to contamination. The design allows for the decay of the pressure signal when both load ports experience a drop in pressure. Equipped with Sun's floating style construction, the CSAXAXN minimizes potential internal parts binding, which could result from excessive installation torque or variations in cavity/cartridge machining. This model operates efficiently within a hydraulic system with a maximum capacity of 1.25 gpm (4.7 L/min) and can withstand a maximum operating pressure up to 5000 psi (350 bar). Its precise engineering ensures minimal valve leakage at 110 SUS (24 cSt), capped at 5 drops/min (0.3 cc/min). The CSAXAXN is compact and lightweight, weighing just .20 lb (0.10 kg), and requires an installation torque of 20 - 25 lbf ft (27 - 33 Nm). Its dimensions include a valve hex size of 3/4 in. (19.1 mm), making it suitable for various installations without demanding extensive space. The model also supports Viton seal kits for enhanced performance durability under varied operational conditions. This shuttle valve is an essential component for systems requiring reliable pressure management between two ports, ensuring operational stability and efficiency in hydraulic applications.
