SUN HYDRAULICS
CNJCXZV
$185.40 USD
Tags:
- SUN HYDRAULICS
- Material:CNJCXZV
- Model:CNJC-XZV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNJCXZV (CNJCXZV) is designed as a versatile and robust hydraulic check valve that facilitates efficient fluid control in hydraulic systems. This model features innovative freeflow, nose-to-side check valves with a bypass orifice, which allows unimpeded flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1. The specified orifice diameter can be customized within a range of .016 to .354 inches (0.4 to 9 mm), and for ease of maintenance and identification, this diameter is stamped on one of the cartridge's hex faces. Constructed for high-pressure applications, the CNJCXZV valve can withstand up to 5000 psi (350 bar) at both ports. It is built using Sun\u2019s floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. This ensures reliable performance even under demanding conditions. The valve's compatibility with corrosive environments is enhanced by its corrosion-resistant design options, identified by model code suffixes AP or LH. Each unit fits into a T18A cavity and supports a maximum flow capacity of 120 gpm (480 L/min), making it suitable for various industrial applications requiring precise fluid control. Installation specifications include a valve hex size of 1 5/8 inches (41.3 mm) and an installation torque range of 350 - 375 lbf ft (474 - 508 Nm). For sealing solutions, it employs Viton seals, ensuring durability and resistance against high temperatures and chemicals. Overall, the Sun Hydraulics CNJCXZV provides a reliable solution for controlling fluid flow in hydraulic systems, particularly where high pressure and corrosion resistance are critical considerations.
The Sun Hydraulics CNJCXZV (CNJCXZV) is designed as a versatile and robust hydraulic check valve that facilitates efficient fluid control in hydraulic systems. This model features innovative freeflow, nose-to-side check valves with a bypass orifice, which allows unimpeded flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1. The specified orifice diameter can be customized within a range of .016 to .354 inches (0.4 to 9 mm), and for ease of maintenance and identification, this diameter is stamped on one of the cartridge's hex faces. Constructed for high-pressure applications, the CNJCXZV valve can withstand up to 5000 psi (350 bar) at both ports. It is built using Sun\u2019s floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining. This ensures reliable performance even under demanding conditions. The valve's compatibility with corrosive environments is enhanced by its corrosion-resistant design options, identified by model code suffixes AP or LH. Each unit fits into a T18A cavity and supports a maximum flow capacity of 120 gpm (480 L/min), making it suitable for various industrial applications requiring precise fluid control. Installation specifications include a valve hex size of 1 5/8 inches (41.3 mm) and an installation torque range of 350 - 375 lbf ft (474 - 508 Nm). For sealing solutions, it employs Viton seals, ensuring durability and resistance against high temperatures and chemicals. Overall, the Sun Hydraulics CNJCXZV provides a reliable solution for controlling fluid flow in hydraulic systems, particularly where high pressure and corrosion resistance are critical considerations.

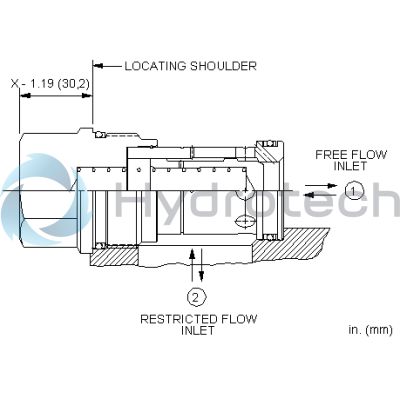

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .354 in.0,4 - 9 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-018-006 |
