SUN HYDRAULICS
CNJCXZN
$178.90 USD
Tags:
- SUN HYDRAULICS
- Material:CNJCXZN
- Model:CNJC-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNJCXZN (CNJCXZN) is a high-performance hydraulic valve designed for precise fluid control in various applications. This model features a freeflow, nose-to-side check valve with a bypass orifice, allowing unrestricted flow from port 1 to port 2 while employing a customer-specified orifice to restrict flow from port 2 to port 1. The specific orifice range for this model spans from 0.016 inches (0.4 mm) to 0.354 inches (9 mm), catering to diverse hydraulic system requirements. Constructed for durability and reliability, the CNJCXZN can withstand pressures up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure environments. Its corrosion-resistant cartridge design ensures long-term performance even in corrosive settings, highlighted by the optional model code suffixes AP or LH for enhanced material construction. The valve incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. This feature ensures consistent operation and longevity of the valve under varying operational conditions. With a maximum capacity of 120 gpm (480 L/min), the CNJCXZN is capable of handling substantial flow rates, making it an ideal choice for applications requiring robust fluid management solutions. The valve's hex size is 1 5/8 inches (41.3 mm), and it requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm), ensuring secure fitting into hydraulic systems. Overall, the Sun Hydraulics CNJCXZN offers precise control and high capacity in hydraulic flow management, tailored to meet specific customer needs with its customizable orifice feature and robust construction suited for harsh environments.
The Sun Hydraulics CNJCXZN (CNJCXZN) is a high-performance hydraulic valve designed for precise fluid control in various applications. This model features a freeflow, nose-to-side check valve with a bypass orifice, allowing unrestricted flow from port 1 to port 2 while employing a customer-specified orifice to restrict flow from port 2 to port 1. The specific orifice range for this model spans from 0.016 inches (0.4 mm) to 0.354 inches (9 mm), catering to diverse hydraulic system requirements. Constructed for durability and reliability, the CNJCXZN can withstand pressures up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure environments. Its corrosion-resistant cartridge design ensures long-term performance even in corrosive settings, highlighted by the optional model code suffixes AP or LH for enhanced material construction. The valve incorporates Sun's floating style construction which minimizes internal parts binding\u2014a common issue caused by excessive installation torque or cavity/cartridge machining variations. This feature ensures consistent operation and longevity of the valve under varying operational conditions. With a maximum capacity of 120 gpm (480 L/min), the CNJCXZN is capable of handling substantial flow rates, making it an ideal choice for applications requiring robust fluid management solutions. The valve's hex size is 1 5/8 inches (41.3 mm), and it requires an installation torque between 350 - 375 lbf ft (474 - 508 Nm), ensuring secure fitting into hydraulic systems. Overall, the Sun Hydraulics CNJCXZN offers precise control and high capacity in hydraulic flow management, tailored to meet specific customer needs with its customizable orifice feature and robust construction suited for harsh environments.

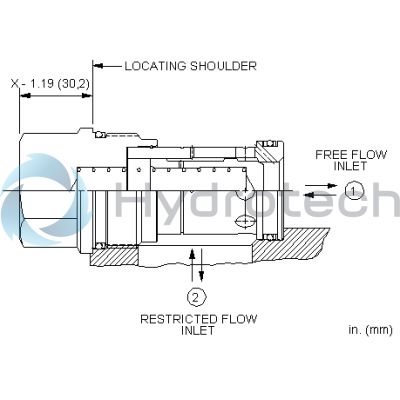

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-18A |
| Series | 4 |
| Capacity | 120 gpm480 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .354 in.0,4 - 9 mm |
| Valve Hex Size | 1 5/8 in.41,3 mm |
| Valve Installation Torque | 350 - 375 lbf ft474 - 508 Nm |
| Seal kit - Cartridge | Viton: 990-018-006 |
