SUN HYDRAULICS
CNHCXZN
$92.00 USD
Tags:
- SUN HYDRAULICS
- Material:CNHCXZN
- Model:CNHC-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNHCXZN (CNHCXZN) is a high-performance hydraulic check valve designed for robust and efficient operation in various applications. This valve allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, effectively managing fluid control in hydraulic systems. The specified orifice diameter, critical for precise fluid control, is conveniently stamped on one of the cartridge's hex faces, ensuring easy identification and maintenance. Constructed to withstand pressures up to 5000 psi (350 bar) at both ports, the CNHCXZN is suitable for high-pressure environments, enhancing its versatility across different hydraulic applications. The valve features Sun's innovative floating style construction which minimizes internal part binding and potential malfunctions caused by excessive installation torque or variations in cavity/cartridge machining. This design ensures reliability and longevity even under demanding conditions. The CNHCXZN fits within a T16A cavity and belongs to the Series 3 category, with a maximum flow capacity of 60 gpm (240 L/min). It is engineered with an orifice range from .016 to .252 inches (0.4 to 6.4 mm), making it adaptable for various flow requirements. For installation, it requires a torque between 150 and 160 lbf ft (203 - 217 Nm) and utilizes a Viton seal kit (990016006), ensuring secure sealing and resistance against fluid leakage. Overall, the CNHCXZN check valve is an essential component for systems requiring reliable unidirectional flow control combined with the flexibility of a customizable orifice size, all enclosed within a corrosion-resistant cartridge suitable for harsh environments.
The Sun Hydraulics CNHCXZN (CNHCXZN) is a high-performance hydraulic check valve designed for robust and efficient operation in various applications. This valve allows free flow from port 1 to port 2 while incorporating a customer-specified orifice to restrict flow from port 2 to port 1, effectively managing fluid control in hydraulic systems. The specified orifice diameter, critical for precise fluid control, is conveniently stamped on one of the cartridge's hex faces, ensuring easy identification and maintenance. Constructed to withstand pressures up to 5000 psi (350 bar) at both ports, the CNHCXZN is suitable for high-pressure environments, enhancing its versatility across different hydraulic applications. The valve features Sun's innovative floating style construction which minimizes internal part binding and potential malfunctions caused by excessive installation torque or variations in cavity/cartridge machining. This design ensures reliability and longevity even under demanding conditions. The CNHCXZN fits within a T16A cavity and belongs to the Series 3 category, with a maximum flow capacity of 60 gpm (240 L/min). It is engineered with an orifice range from .016 to .252 inches (0.4 to 6.4 mm), making it adaptable for various flow requirements. For installation, it requires a torque between 150 and 160 lbf ft (203 - 217 Nm) and utilizes a Viton seal kit (990016006), ensuring secure sealing and resistance against fluid leakage. Overall, the CNHCXZN check valve is an essential component for systems requiring reliable unidirectional flow control combined with the flexibility of a customizable orifice size, all enclosed within a corrosion-resistant cartridge suitable for harsh environments.

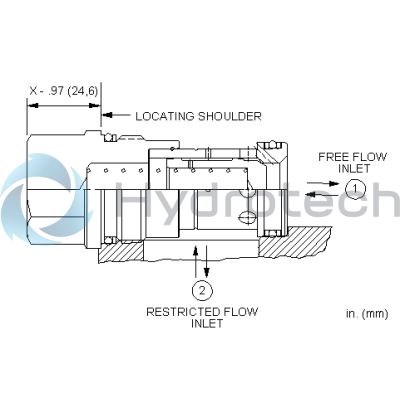

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-16A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .252 in.0,4 - 6,4 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Seal kit - Cartridge | Viton: 990-016-006 |
