SUN HYDRAULICS
CNGDXEN
$107.70 USD
Tags:
- SUN HYDRAULICS
- Material:CNGDXEN
- Model:CNGD-XEN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNGDXEN (CNGDXEN) is a highly specialized hydraulic valve designed for efficient flow control in hydraulic systems. This model, part of the T17A series, features a unique side-to-nose cheater check valve configuration with a bypass orifice, allowing it to function as both a 2-port and 3-port valve within a single cartridge. The CNGDXEN permits free flow from port 2 to port 1, while the customer-specified orifice controls the flow from port 1 to port 2, with port 3 being blocked off. This valve is particularly effective in full-time regeneration circuits where it enables full force development by the cylinder upon stopping by dropping the rod end pressure to zero when flow ceases. It boasts an impressive capacity of up to 60 gpm (240 L/min) and can operate at pressures up to 5000 psi (350 bar). The orifice range for this model spans from .016 to .218 inches (0.4 to 5.5 mm), catering to a variety of flow requirements. Sun Hydraulics has equipped the CNGDXEN with their floating style construction which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable performance and longevity of the valve in diverse operating conditions. The valve itself is robust, with an installation torque range between 150 and 160 lbf ft (203 - 217 Nm) and weighs approximately 1.10 lb (0.50 kg). Designed specifically for applications that demand high durability and corrosion resistance, this model can be identified by its specific model code suffixes AP or LH for different environments, as detailed in the configuration section of its specifications.
The Sun Hydraulics CNGDXEN (CNGDXEN) is a highly specialized hydraulic valve designed for efficient flow control in hydraulic systems. This model, part of the T17A series, features a unique side-to-nose cheater check valve configuration with a bypass orifice, allowing it to function as both a 2-port and 3-port valve within a single cartridge. The CNGDXEN permits free flow from port 2 to port 1, while the customer-specified orifice controls the flow from port 1 to port 2, with port 3 being blocked off. This valve is particularly effective in full-time regeneration circuits where it enables full force development by the cylinder upon stopping by dropping the rod end pressure to zero when flow ceases. It boasts an impressive capacity of up to 60 gpm (240 L/min) and can operate at pressures up to 5000 psi (350 bar). The orifice range for this model spans from .016 to .218 inches (0.4 to 5.5 mm), catering to a variety of flow requirements. Sun Hydraulics has equipped the CNGDXEN with their floating style construction which significantly reduces the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This feature ensures reliable performance and longevity of the valve in diverse operating conditions. The valve itself is robust, with an installation torque range between 150 and 160 lbf ft (203 - 217 Nm) and weighs approximately 1.10 lb (0.50 kg). Designed specifically for applications that demand high durability and corrosion resistance, this model can be identified by its specific model code suffixes AP or LH for different environments, as detailed in the configuration section of its specifications.

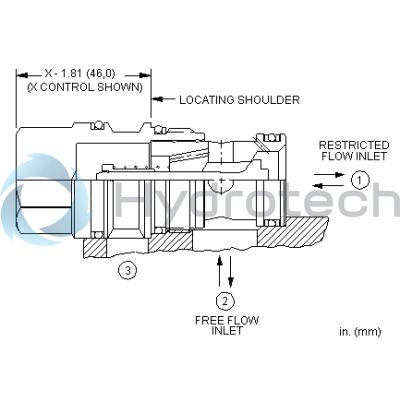

Free-flow, side-to-nose cheater check valves with a bypass orifice function as a 2-port check valve in a 3-port cavity. They allow free flow from port 2 to port 1 with a customer specified orifice that controls flow from port 1 to port 2. Port 3 of the cartridge is blocked off.
- When used in a full time regeneration circuit these valves allow full force to be developed by the cylinder when it comes to a stop. The bypass orifice drops the rod end pressure to zero when flow out of the rod stops.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .218 in.0,4 - 5,5 mm |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Model Weight | 1.10 lb0,50 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
