SUN HYDRAULICS
CNDCXZN
$35.30 USD
Tags:
- SUN HYDRAULICS
- Material:CNDCXZN
- Model:CNDC-XZN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDCXZN (CNDCXZN) is a high-performance hydraulic check valve designed for robust and efficient fluid control in various applications. This valve features a unique free-flow, nose-to-side configuration, allowing unrestricted flow from port 1 to port 2 while incorporating a customer-specified orifice to control the reverse flow from port 2 to port 1. The specified orifice range for this model spans from 0.016 to 0.107 inches (0.4 to 2.7 mm), catering to diverse operational requirements and enhancing application-specific performance. Constructed for durability, the CNDCXZN can withstand pressures up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure systems. Its compatibility with standard T13A cavity and Series 1 frame size ensures ease of installation across various setups without the need for extensive modifications. Additionally, the valve's maximum flow capacity reaches up to 15 gpm (60 L/min), sufficient for handling substantial fluid volumes efficiently. The CNDCXZN valve also incorporates Sun Hydraulics' floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014promoting reliability and longevity of the component in operational environments. Furthermore, this model is available with corrosion-resistant options denoted by suffixes AP or LH, making it ideal for use in corrosive settings. With its robust design and versatile specifications, the Sun Hydraulics CNDCXZN check valve is an essential component for ensuring precise fluid control in hydraulic systems across various applications, maintaining stability and efficiency even under rigorous conditions.
The Sun Hydraulics CNDCXZN (CNDCXZN) is a high-performance hydraulic check valve designed for robust and efficient fluid control in various applications. This valve features a unique free-flow, nose-to-side configuration, allowing unrestricted flow from port 1 to port 2 while incorporating a customer-specified orifice to control the reverse flow from port 2 to port 1. The specified orifice range for this model spans from 0.016 to 0.107 inches (0.4 to 2.7 mm), catering to diverse operational requirements and enhancing application-specific performance. Constructed for durability, the CNDCXZN can withstand pressures up to 5000 psi (350 bar) at both ports, making it suitable for high-pressure systems. Its compatibility with standard T13A cavity and Series 1 frame size ensures ease of installation across various setups without the need for extensive modifications. Additionally, the valve's maximum flow capacity reaches up to 15 gpm (60 L/min), sufficient for handling substantial fluid volumes efficiently. The CNDCXZN valve also incorporates Sun Hydraulics' floating style construction which minimizes potential internal binding caused by excessive installation torque or variations in cavity/cartridge machining\u2014promoting reliability and longevity of the component in operational environments. Furthermore, this model is available with corrosion-resistant options denoted by suffixes AP or LH, making it ideal for use in corrosive settings. With its robust design and versatile specifications, the Sun Hydraulics CNDCXZN check valve is an essential component for ensuring precise fluid control in hydraulic systems across various applications, maintaining stability and efficiency even under rigorous conditions.

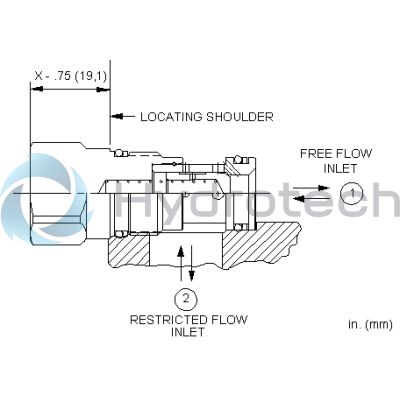

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .107 in.0,4 - 2,7 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
