SUN HYDRAULICS
CNDCLAN
$41.30 USD
Tags:
- SUN HYDRAULICS
- Material:CNDCLAN
- Model:CNDC-LAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics CNDCLAN (CNDCLAN) is a versatile check valve designed for hydraulic systems requiring reliable, directional flow control. This model features a unique free-flow, nose-to-side check valve configuration that permits unrestricted flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specific orifice diameter can be customized according to user needs and is conveniently stamped on one of the cartridge\u2019s hex faces for easy identification. Constructed to operate under high pressures, the CNDCLAN can handle up to 5000 psi (350 bar) at both ports, making it suitable for heavy-duty applications. It has a maximum flow capacity of 15 gpm (60 L/min) and accommodates an orifice range from .016 to .107 inches (0.4 to 2.7 mm). The valve's T13A cavity and Series 1 designation indicate its compatibility with standard hydraulic setups within the specified frame size. To ensure durability in corrosive environments, options for corrosion-resistant cartridges are available, identified by the model code suffixes AP or LH. Additionally, the CNDCLAN benefits from Sun\u2019s floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This check valve is ideal for applications where precision flow control is necessary, and its robust design ensures long-term reliability and performance in various hydraulic systems. The installation requires a torque of between 30 - 35 lbf-ft (41 - 47 Nm), and it utilizes a Viton seal kit for enhanced sealing capabilities under diverse operating conditions.
The Sun Hydraulics CNDCLAN (CNDCLAN) is a versatile check valve designed for hydraulic systems requiring reliable, directional flow control. This model features a unique free-flow, nose-to-side check valve configuration that permits unrestricted flow from port 1 to port 2, while incorporating a customer-specified orifice to restrict flow in the reverse direction from port 2 to port 1. The specific orifice diameter can be customized according to user needs and is conveniently stamped on one of the cartridge\u2019s hex faces for easy identification. Constructed to operate under high pressures, the CNDCLAN can handle up to 5000 psi (350 bar) at both ports, making it suitable for heavy-duty applications. It has a maximum flow capacity of 15 gpm (60 L/min) and accommodates an orifice range from .016 to .107 inches (0.4 to 2.7 mm). The valve's T13A cavity and Series 1 designation indicate its compatibility with standard hydraulic setups within the specified frame size. To ensure durability in corrosive environments, options for corrosion-resistant cartridges are available, identified by the model code suffixes AP or LH. Additionally, the CNDCLAN benefits from Sun\u2019s floating style construction which minimizes the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. This check valve is ideal for applications where precision flow control is necessary, and its robust design ensures long-term reliability and performance in various hydraulic systems. The installation requires a torque of between 30 - 35 lbf-ft (41 - 47 Nm), and it utilizes a Viton seal kit for enhanced sealing capabilities under diverse operating conditions.

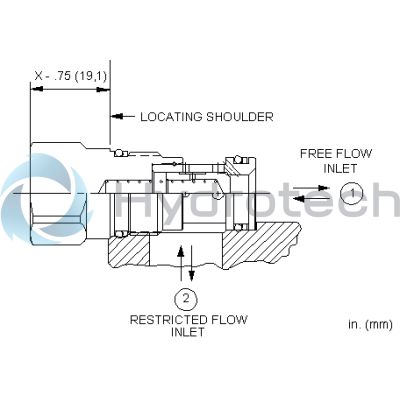

Free-flow, nose-to-side check valves with a bypass orifice allow free flow from port 1 to port 2. A customer specified orifice is included to restrict flow from port 2 to port 1. See technical data below for orifice range.
- Two-port check valves share the same cavity for a given frame size, however, pay close attention as flow paths may be in opposite directions.
- Will accept 5000 psi (350 bar) at ports 1 and 2.
- Valves with the opposite flow path (free flow from 2 to 1) are considered flow controls and may be found listed as fixed orifice, non-pressure compensated flow control valve with reverse flow check.
- The customer specified orifice diameter is stamped on one of the cartridge's hex faces.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP or /LH (see CONFIGURATION section). For further details, please see the Materials of Construction page.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-13A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Orifice Range | .016 - .107 in.0,4 - 2,7 mm |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-010-006 |
