SUN HYDRAULICS
ZFV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

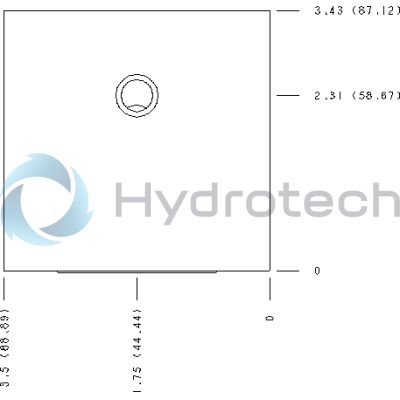

The Sun Hydraulics ZFV (Material Number: ZFV) is a versatile line mount manifold designed for hydraulic systems requiring sandwich mount through port configurations. Constructed from 6061-T651 aluminum, this manifold offers excellent corrosion resistance and durability, making it suitable for various applications. The body features a 1.50 SAE C62 interface and is equipped with open cavities compatible with the T16A cavity type. It supports port sizes of 1 12 Code 62, which allows for seamless integration into existing hydraulic setups. This particular model does not undergo anodizing due to several practical reasons, such as maintaining cost-effectiveness and avoiding potential issues related to fatigue life and breakaway torque during component removal. Despite the absence of anodizing, the use of high-quality aluminum ensures that the manifold maintains its integrity in demanding environments. The ZFV manifold is engineered to accommodate both inch and metric-based flanges, offering flexibility in installation across different system configurations. It is essential to consider the maximum system pressure when utilizing this manifold; it is rated for pressures up to 3000 psi (210 bar) due to the material constraints of aluminum construction. Overall, the Sun Hydraulics ZFV manifold provides reliable performance in hydraulic systems where corrosion resistance and compatibility with high flow valves are critical.
