SUN HYDRAULICS
ZDV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

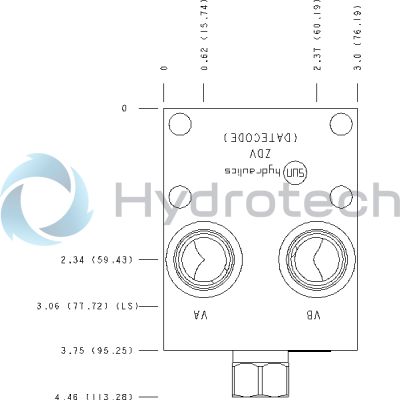

The Sun Hydraulics ZDV (Material Number: ZDV) is a motor mount manifold designed to facilitate the control and protection of hydraulic motors, specifically compatible with CharLynn H and S series motors. It features an SAE 10 port size and an open cavity design designated as 11CavityT11A. The manifold body is made from 6061T651 aluminum, offering a balance of strength, corrosion resistance, and cost-effectiveness. This material choice ensures durability without the need for anodizing, as it naturally resists corrosion. The ZDV model includes a shuttle on its A-side body feature, enhancing its utility in hydraulic applications by allowing fluid to be redirected or isolated as needed. A riser gage port adapter is necessary when using this product with CharLynn S series motors to ensure proper functionality and pressure monitoring; Sun models ZVQ NPT, WPA SAE, and WPB BSPP can be referenced for compatible adapters. It's crucial to consider the maximum system pressure when integrating this manifold into a hydraulic system; the aluminum construction limits the pressure rating to a maximum of 3000 psi (210 bar). This limitation is independent of port type or size but must be adhered to maintain operational integrity and safety. The Sun Hydraulics ZDV model is engineered for effective integration into hydraulic systems requiring reliable motor mounting solutions with specific attention to pressure constraints and material performance under varying environmental conditions.
