SUN HYDRAULICS
ZBV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

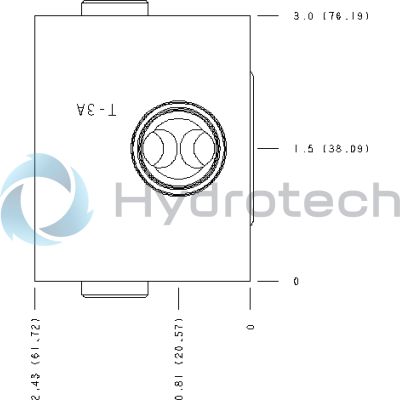

The Sun Hydraulics ZBV (ZBV) is a robust line mount manifold designed for efficient hydraulic system integration. It features a sandwich mount through port configuration and is compatible with a 1.25 SAE C62 interface, making it versatile for various applications requiring reliable fluid control. The manifold has four mounting holes with a diameter of .59 inches (15.0 mm for metric models), accommodating secure installation in hydraulic systems. With one open cavity and a T3A cavity type, it supports flexible system design and component integration. The port size is specified as 1 1/4 Code 62, ensuring compatibility with standard hydraulic fittings. Constructed from 6061-T651 aluminum, the manifold offers excellent corrosion resistance without the need for anodizing, which could compromise fatigue life due to increased brittleness. This material choice ensures longevity and durability in corrosive environments while maintaining cost-effectiveness. It's important to note that the manifold's pressure rating is limited to 3000 psi (210 bar), determined by its aluminum construction, regardless of port type or size. The ZBV manifold is particularly suited for systems utilizing inch-based flanges and requires careful consideration of maximum system pressure to ensure safe operation within its specified limits. Its design supports high flow valves and integrates seamlessly into custom hydraulic setups, making it an ideal choice for engineers seeking reliable performance in demanding conditions.
