SUN HYDRAULICS
YHL

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

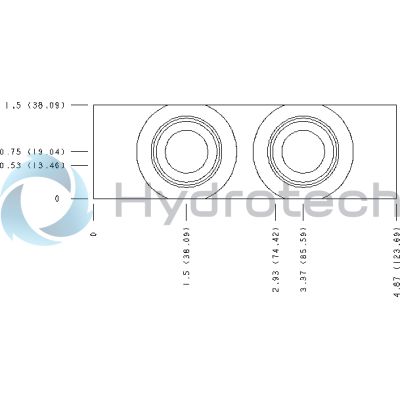

The Sun Hydraulics YHL (YHL) is a line mount hydraulic manifold designed for efficient fluid control in various hydraulic systems. This model features a cross pilot with shuttle and is equipped with two open cavities, making it suitable for complex hydraulic circuits requiring multiple valve functions. The manifold is constructed from high-quality 6061T651 aluminum, known for its excellent corrosion resistance and strength, making it ideal for demanding environments. The YHL model includes two mounting holes with a diameter of .41 inches (10.4 mm) that extend through the body, allowing secure installation. It interfaces with SAE 12 port sizes, facilitating compatibility with standard hydraulic components. The manifold's design ensures optimal flow management within hydraulic systems, enhancing performance and reliability. It is important to note that while the aluminum construction offers significant benefits in terms of weight and corrosion resistance, it limits the maximum system pressure to 3000 psi (210 bar). This specification should be carefully considered during system design to ensure compatibility and safety. This product does not undergo anodizing due to considerations such as cost, logistics, and potential impacts on fatigue life. The decision not to anodize preserves the integrity of the manifold under pressure by avoiding the introduction of fatigue cracks that can occur with anodized surfaces. The YHL manifold is an essential component in systems where precise fluid control and effective integration into larger assemblies are required.
