SUN HYDRAULICS
XVN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

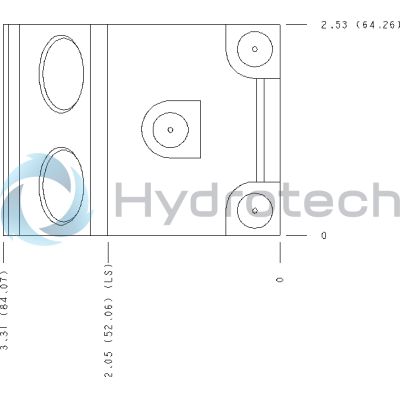

The Sun Hydraulics XVN (Material Number: XVN) is a line mount hydraulic manifold designed for direct mounting with cross pilot capabilities and features two gasket ports. The manifold accommodates three mounting holes with a diameter of 0.42 inches (10.7 mm) and a c'bore diameter of 0.59 inches (15.0 mm), allowing for secure and stable installation. It includes open cavities designed in the T11A configuration and is compatible with SAE 6 port sizes, enabling easy integration into existing hydraulic systems. Constructed from 6061T651 aluminum, this manifold provides excellent corrosion resistance, making it suitable for various environmental conditions without the need for anodizing, which can compromise fatigue life due to its brittle nature. This material choice also ensures that the manifold can handle pressures up to 3000 psi (210 bar), provided the port type and size are appropriately considered in the system design. The Sun Hydraulics XVN manifold serves as an efficient plumbing solution within hydraulic systems, offering robust performance while maintaining reliability over extended use periods in demanding applications.
