SUN HYDRAULICS
XTH

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

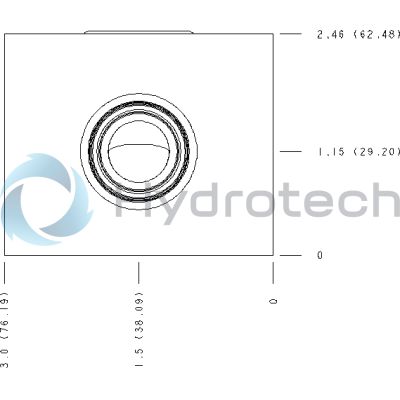

The Sun Hydraulics XTH (Material Number: XTH) is a line mount manifold designed for hydraulic systems requiring high flow capacity. It features a 0.75 SAE C61 interface and is constructed from durable 6061T651 aluminum, known for its excellent corrosion resistance and cost-effectiveness. This model is intended for direct mounting applications and includes a single open cavity, specifically the T-22A cavity, which facilitates efficient integration with compatible hydraulic components. The manifold supports port sizes of 3/4 inch, adhering to Code 61 specifications, ensuring compatibility with standard hydraulic connections. This product is particularly suitable for applications where space optimization and robust performance are critical. The design of the XTH allows it to handle system pressures up to 3000 psi (210 bar), making it ideal for various demanding hydraulic environments. However, users should note that the maximum pressure rating is influenced by both the material of construction and the port size/type. The choice of not anodizing the aluminum body stems from considerations such as maintaining cost efficiency, avoiding logistical complications in high-volume production, and preserving fatigue life by preventing crack initiation under pressure. This decision underscores Sun Hydraulics' focus on delivering reliable products without unnecessary processes that could compromise performance. Overall, the Sun Hydraulics XTH manifold provides a dependable solution for integrating high-flow valves in hydraulic systems while offering ease of installation and long-term durability due to its high-quality aluminum construction.
