SUN HYDRAULICS
XMOAXXN
$25.30 USD
Tags:
- SUN HYDRAULICS
- Material:XMOAXXN
- Model:XMOA-XXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics XMOAXXN (XMOAXXN) is a versatile cavity plug designed to accommodate both four-port and six-port cavities. Specifically, when used in four-port cavities such as T21A, T22A, T23A, and T24A, it maintains connectivity between ports 1 and 2 while blocking ports 3 and 4. In the case of six-port cavities like T61A, T62A, T63A, and T64A, it ensures continuity among ports 1 through 4 while sealing off ports 5 and 6. This product supports a maximum operating pressure of up to 5000 psi (350 bar) and fits a valve hex size of 7/8 inch (22.2 mm). The recommended installation torque for this cavity plug ranges from 30 to 35 lbf-ft (41 to 47 Nm). For sealing purposes, it is compatible with Viton seal kits, specifically the cartridge Viton model number 990021006. This component is ideal for applications requiring reliable port management within hydraulic systems and offers robust performance under high-pressure conditions.
The Sun Hydraulics XMOAXXN (XMOAXXN) is a versatile cavity plug designed to accommodate both four-port and six-port cavities. Specifically, when used in four-port cavities such as T21A, T22A, T23A, and T24A, it maintains connectivity between ports 1 and 2 while blocking ports 3 and 4. In the case of six-port cavities like T61A, T62A, T63A, and T64A, it ensures continuity among ports 1 through 4 while sealing off ports 5 and 6. This product supports a maximum operating pressure of up to 5000 psi (350 bar) and fits a valve hex size of 7/8 inch (22.2 mm). The recommended installation torque for this cavity plug ranges from 30 to 35 lbf-ft (41 to 47 Nm). For sealing purposes, it is compatible with Viton seal kits, specifically the cartridge Viton model number 990021006. This component is ideal for applications requiring reliable port management within hydraulic systems and offers robust performance under high-pressure conditions.

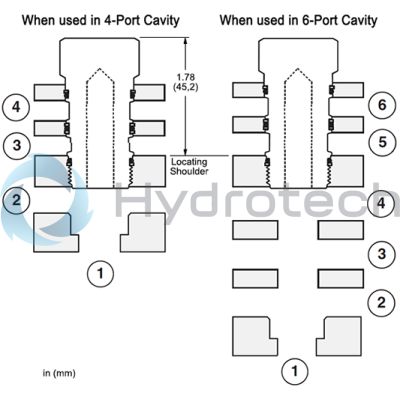

These cavity plugs can be used for both four-port and six-port cavities. When used in four-port cavities (T-21A, T-22A, T-23A and T-24A), ports 1 and 2 remain connected and ports 3 and 4 are blocked. When used in six-port cavities (T-61A, T-62A, T-63A and T-64A), ports 1, 2, 3 and 4 remain connected and ports 5 and 6 are blocked.
| Cavity | T-21A & T-61A |
| Series | 1 |
| Maximum Operating Pressure | 5000 psi350 bar |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Seal kit - Cartridge | Viton: 990-021-006 |
