SUN HYDRAULICS
XIW

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

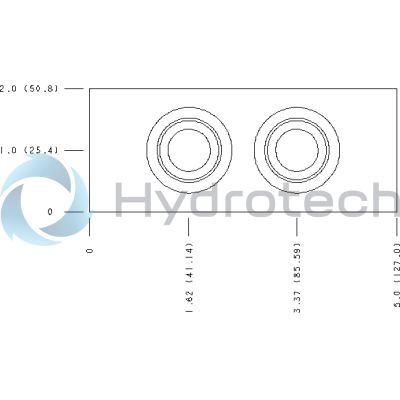

The Sun Hydraulics XIW (Material Number: XIW) is a line mount hydraulic manifold designed with cross pilot functionality and a common port configuration labeled as port 4. This model is engineered to accommodate two open cavities, specifically utilizing the T-22A cavity format. The manifold features a mounting hole diameter of 0.41 inches (10.4 mm) and allows for through-hole mounting with two designated holes for secure installation. It is equipped with ports sized at 3/4 BSPP, making it suitable for various hydraulic applications requiring precise fluid control and distribution. Constructed from 6061-T651 aluminum, the XIW manifold offers notable corrosion resistance, which makes it durable in challenging environments without the need for anodizing. This material choice also contributes to its relative cost-effectiveness and availability in diverse shapes and sizes while maintaining adequate strength for its intended uses. The design considerations ensure that the manifold can handle system pressures up to a maximum of 3000 psi (210 bar), although users should carefully assess the system's pressure requirements based on specific application needs. The Sun Hydraulics XIW is particularly suited for installations where space constraints or specific mounting configurations are present due to its compact design and versatile port arrangement. Its robust construction supports efficient fluid management in complex hydraulic systems, offering reliability and ease of integration within existing setups.
