SUN HYDRAULICS
XHT

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

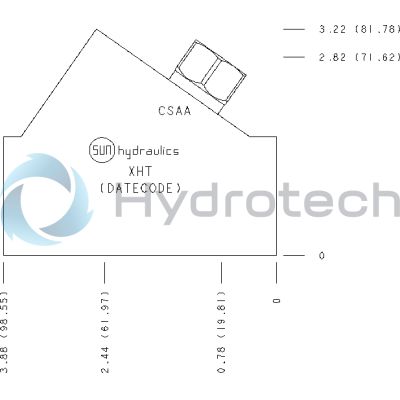

The Sun Hydraulics XHT (Material Number: XHT) is a line mount manifold specifically designed for hydraulic systems, featuring an inline, cross pilot with shuttle body type. It is constructed from 6061T651 aluminum, known for its strength and exceptional corrosion resistance. This manifold is engineered without an interface and includes two open cavities with a T-2A cavity designation. The mounting configuration consists of two holes with a diameter of 0.34 inches (8.6 mm) that extend through the entire depth of the manifold, ensuring secure installation. The port size is specified as 1/4 BSPP, suitable for various hydraulic applications requiring reliable fluid connections. The XHT model's design accommodates high flow valves and is compatible with standard line mount configurations, making it versatile for integration into existing systems. It does not undergo anodization, as the manufacturer prioritizes maintaining the material's natural corrosion resistance and avoiding potential issues related to fatigue life and increased breakaway torque associated with anodized surfaces. This manifold is ideal for applications where durability and corrosion resistance are critical factors due to its robust construction material. However, users must carefully consider system pressure limitations, as aluminum manifolds are not rated for pressures exceeding 3000 psi (210 bar). This consideration ensures that the manifold operates within safe parameters while providing efficient hydraulic control in various settings.
