SUN HYDRAULICS
XHA/S

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

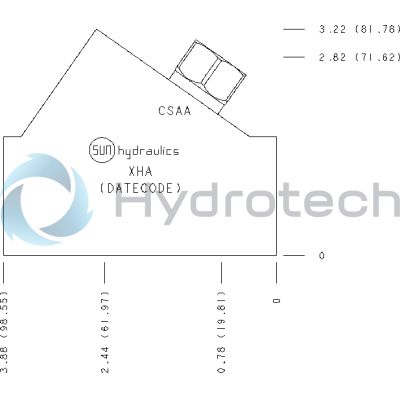

The Sun Hydraulics XHA/S (Material Number: XHA/S) is a line-mount manifold designed for versatile hydraulic applications. This product features an inline, cross-pilot configuration with a shuttle, making it suitable for systems requiring efficient fluid control and distribution. The manifold body is constructed from 6061-T651 aluminum, known for its excellent corrosion resistance and strength, ensuring durability in various environments. It includes two open cavities and is compatible with T-2A cavity cartridges. The XHA/S model has a mounting hole diameter of 0.34 inches (8.6 mm) and accommodates through-depth mounting with two holes available for secure installation. Additionally, the manifold ports are sized at 1/4 NPTF, allowing for straightforward integration into existing hydraulic systems. The design of the Sun Hydraulics XHA/S manifold emphasizes reliability and ease of use without the need for anodizing, which can affect fatigue life and increase costs. This product is particularly advantageous in applications where maintaining system pressure up to 3000 psi (210 bar) is essential, as it is constructed to handle such conditions within its material limitations. The XHA/S manifold serves as an effective solution for managing hydraulic fluid flow in diverse settings due to its robust construction and adaptability to different configurations.
