SUN HYDRAULICS
XBAAXXN
$50.40 USD
Tags:
- SUN HYDRAULICS
- Material:XBAAXXN
- Model:XBAA-XXN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics XBAAXXN (XBAAXXN) is a cavity plug designed to allow ports 2 and 3 to remain open while effectively blocking port 1, making it suitable for specific hydraulic applications where such flow configurations are required. Constructed for the T-2A cavity series, this plug can withstand a maximum operating pressure of up to 5000 psi (350 bar), ensuring robust performance under demanding conditions. The valve hex size measures 1 1/8 inches (28.6 mm), and it should be installed with a torque between 45 and 50 lbf ft (61 to 68 Nm) for optimal performance. The seal kit for this cartridge is made of Viton, providing reliable sealing capabilities in various hydraulic environments. Additionally, the product benefits from features like zinc-nickel plating, enhancing its corrosion resistance and extending its service life in harsh conditions. This cavity plug is an integral component for systems requiring precise control over hydraulic flow paths, offering dependable operation through its well-engineered design and construction.
The Sun Hydraulics XBAAXXN (XBAAXXN) is a cavity plug designed to allow ports 2 and 3 to remain open while effectively blocking port 1, making it suitable for specific hydraulic applications where such flow configurations are required. Constructed for the T-2A cavity series, this plug can withstand a maximum operating pressure of up to 5000 psi (350 bar), ensuring robust performance under demanding conditions. The valve hex size measures 1 1/8 inches (28.6 mm), and it should be installed with a torque between 45 and 50 lbf ft (61 to 68 Nm) for optimal performance. The seal kit for this cartridge is made of Viton, providing reliable sealing capabilities in various hydraulic environments. Additionally, the product benefits from features like zinc-nickel plating, enhancing its corrosion resistance and extending its service life in harsh conditions. This cavity plug is an integral component for systems requiring precise control over hydraulic flow paths, offering dependable operation through its well-engineered design and construction.

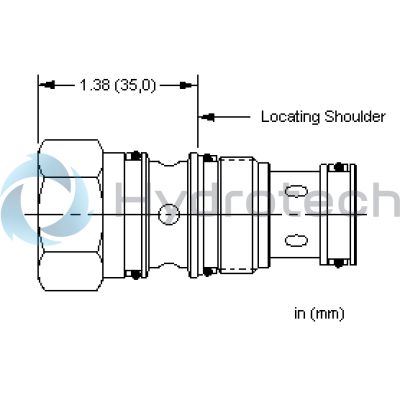

This cavity plug allows ports 2 and 3 to remain open and blocks port 1.
Cavity | T-2A |
Series | 2 |
Maximum Operating Pressure | 5000 psi350 bar |
Valve Hex Size | 1 1/8 in.28,6 mm |
Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
Seal kit - Cartridge | Viton: 990-202-006 |
