SUN HYDRAULICS
SANDWICH BODY
X4C

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

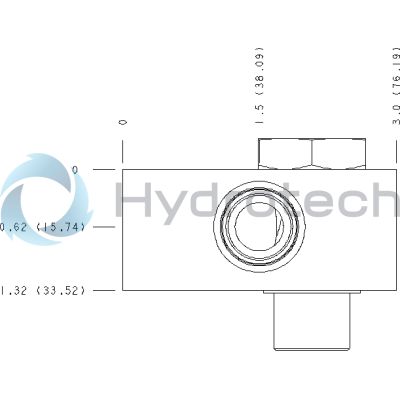

The Sun Hydraulics X4C (Material Number: X4C) is a line mount manifold designed for use in hydraulic systems. It features a banjo bolt interface with through port 3, facilitating easy installation and integration into existing systems. The banjo bolt requires an installation torque ranging from 90 lb. ft. to 99 lb. ft. (120 Nm to 132 Nm), ensuring secure fastening and reliable operation under pressure. The hex size for the banjo bolt is 1.18 inches, providing a robust connection point for hydraulic lines. This manifold includes one open cavity, specifically the T11A cavity, and accommodates a port size of 12 BSPP, making it versatile for various applications. Constructed from 6061T651 aluminum, the X4C manifold offers excellent corrosion resistance without the need for anodizing, which is typically used to enhance surface durability and appearance but can reduce fatigue life in aluminum components. The choice of material ensures that the manifold can withstand harsh environments while maintaining structural integrity up to a maximum system pressure of 3000 psi (210 bar). This makes it suitable for high-flow valve applications where reliability and longevity are critical. The Sun Hydraulics X4C is ideal for hydraulic systems requiring efficient fluid distribution and management within compact spaces, thanks to its streamlined design and effective utilization of available ports and cavities. Its robust construction ensures consistent performance across various operational conditions, making it a dependable choice for engineers seeking reliable hydraulic solutions in demanding environments.
