SUN HYDRAULICS
WSC

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

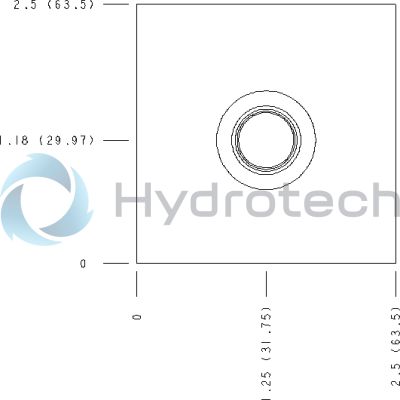

The Sun Hydraulics WSC (Material Number: WSC) is a versatile line mount manifold designed to facilitate efficient fluid control and distribution in hydraulic systems. This manifold features a through port 2 with a gauge port, providing an additional monitoring point for system pressure. It is designed with M10x1.5 6H mounting hole threads and has a depth of 15.7 mm, accommodating secure installation with its 22 mounting holes. The WSC model also includes one open cavity and utilizes the T-11A cavity type, ensuring compatibility with various hydraulic components. The port size of this manifold is 3/8 BSPP, suitable for medium flow applications. Constructed from durable 6061-T651 aluminum, the manifold offers excellent corrosion resistance without the need for anodizing, which could reduce fatigue life and increase breakaway torque during maintenance. This material choice ensures longevity and reliability in demanding environments while maintaining cost-effectiveness and ease of machining. The Sun Hydraulics WSC manifold is ideal for applications requiring robust fluid routing solutions that can withstand pressures up to 3000 psi (210 bar), depending on the system configuration. Its design facilitates integration into existing hydraulic systems or new installations where precise control and monitoring are necessary. With its thoughtful engineering and high-quality construction, the WSC model serves as a reliable component in optimizing hydraulic system performance.
