SUN HYDRAULICS
WDD

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

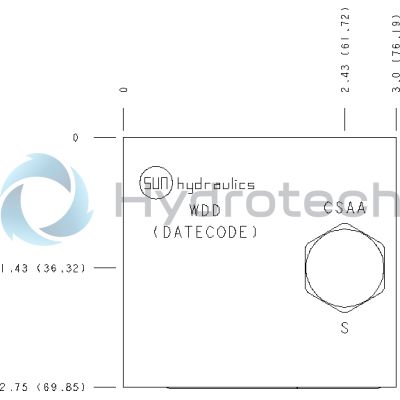

The Sun Hydraulics WDD (Material Number: WDD) is a motor mount manifold designed to facilitate the control and protection of hydraulic motors. This product features an interface compatible with Danfoss OMT and OMTD motors, making it versatile for various hydraulic applications. The manifold includes a shuttle between ports A and B with an external S port, providing efficient fluid management within the system. It is constructed with 6061T651 aluminum, known for its strength, affordability, machinability, and excellent corrosion resistance, which makes it suitable for demanding environments. The manifold's mounting hole configuration includes four holes with a diameter of 0.42 inches (10.7 mm) that extend through the body, complemented by counterbores measuring 0.69 inches (17.5 mm) in diameter and 0.35 inches (8 mm) in depth to accommodate secure installation. This component is particularly useful in applications requiring robust hydraulic motor support while maintaining system integrity under pressure conditions up to 3000 psi (210 bar), which is consistent with the limitations of aluminum manifolds regardless of port size or type. The design ensures that the manifold can withstand typical operational stresses without compromising performance or safety. Its construction avoids anodizing to prevent increased fatigue failure risk associated with anodized surfaces under pressure cycles, thereby enhancing its longevity and reliability in service. Overall, the Sun Hydraulics WDD motor mount manifold provides a dependable solution for integrating hydraulic motors into systems requiring efficient fluid control and protection against environmental factors while ensuring ease of installation and maintenance due to its well-thought-out design attributes.
