SUN HYDRAULICS
WBX

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

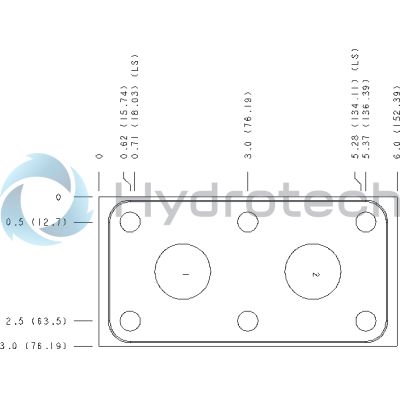

The Sun Hydraulics WBX (Material Number: WBX) is a motor mount manifold designed for use with Staffa B270 and B325 motors. This manifold features a cross port configuration, enhancing its capability to facilitate control and protection of hydraulic motors effectively. It is constructed from 6061-T651 aluminum, known for its strength, corrosion resistance, and availability in various shapes and sizes. The manifold includes six mounting holes with a diameter of 0.41 inches (10.4 mm) that go through the entire body, allowing secure attachment to the motor setup. Additionally, it has two open cavities designed to accommodate T-3A cartridge valves. This product is specifically engineered to optimize hydraulic motor performance by providing a reliable connection point that supports fluid flow management within the system. The robust construction ensures durability while maintaining operational integrity under pressure conditions up to 3000 psi (210 bar), which should be carefully considered during system design to prevent exceeding this limit. The Sun Hydraulics WBX manifold does not undergo anodizing due to several reasons including cost-effectiveness, logistical challenges in mass production consistency, and potential negative impacts on fatigue life due to anodizing-induced surface brittleness. This decision aligns with maintaining the structural reliability of the manifold over extended use. Overall, this motor mount manifold serves as an essential component for hydraulic systems requiring dependable motor support and fluid control capabilities without compromising on material quality or performance standards.
