SUN HYDRAULICS
VRX/Y

$1,804.40 USD

Tags:

SUN HYDRAULICS
Material:VRX/Y
Summary:Manifold

Quantity in stock: 0

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics VRX/Y (Material Number: VRX/Y) is a robust hydraulic manifold designed for complex fluid control applications. This component features a 4-station, parallel circuit configuration with a relief cavity, making it suitable for systems requiring precise fluid distribution and pressure regulation. The manifold is built to accommodate ISO 05 XY Euro interface standards, ensuring compatibility with various hydraulic systems. It includes open cavities labeled as T3A and ports sized at 3/4 BSPP, providing flexibility in connecting different hydraulic components. Constructed from corrosion-resistant 6061-T651 aluminum, the manifold is designed to withstand harsh environments while maintaining structural integrity. However, it should be noted that this material limits the maximum operating pressure to 3000 psi (210 bar). The VRX/Y manifold does not undergo anodization, which helps maintain cost efficiency and avoids potential fatigue life reduction associated with anodized surfaces. This product is ideal for applications where reliable fluid management is necessary without exceeding the specified pressure limitations.

Description

Body Type	Bar ManifoldBar Manifold
Interface	ISO 05 - X&Y (Euro)ISO 05 - X&Y (Euro)
Body Features	4 Station, Parallel circuit with relief cavity4 Station, Parallel circuit with relief cavity
Open Cavities	11
Cavity	T-3A
Port Size	3/4" BSPP3/4" BSPP

Show FAQ

How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.

Additional Resources

Notes:

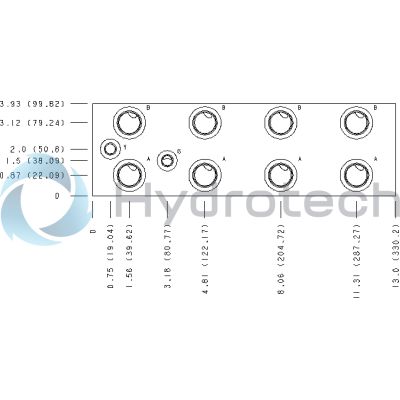

For mounting bracket information, see catalog or drawing 991-021-***
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
