SUN HYDRAULICS
VNC

$335.90 USD

Tags:

SUN HYDRAULICS
Material:VNC
Summary:Manifold

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

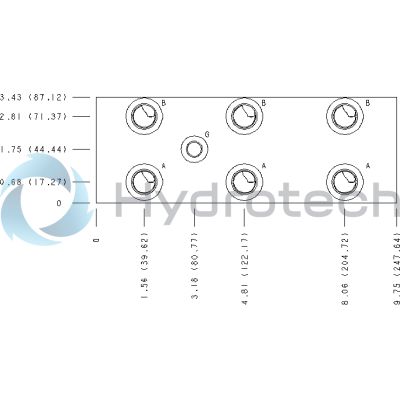

The Sun Hydraulics VNC (Material Number: VNC) is a robust and versatile bar manifold designed for hydraulic systems. This model features a 3-station, parallel circuit configuration with a relief cavity, making it suitable for complex hydraulic applications requiring efficient flow management. The manifold adheres to the ISO 05 interface standard and is constructed from 6061T651 aluminum, known for its strength, corrosion resistance, and availability in various shapes and sizes. The body includes M8x1.25 threaded mounting holes with a depth of .44 inches (11.1 mm), totaling four in quantity, ensuring secure installation in diverse setups. The VNC manifold is engineered to accommodate high-pressure hydraulic operations with an open cavity type T3A and port size of 12 BSPP. However, it is important to note that aluminum manifolds are not rated for pressures exceeding 3000 psi (210 bar). The non-anodized finish of the manifold enhances its fatigue life by avoiding the brittle surface that anodizing can introduce, thus ensuring longevity and reliability under operational stresses. This product is ideal for use in applications where space optimization and efficient component integration are critical. Its design facilitates easy connection with other hydraulic components while maintaining system integrity through its durable construction and standardized interface compatibility.

Description

Body Type	Bar ManifoldBar Manifold
Interface	ISO 05ISO 05
Body Features	3 Station, Parallel circuit with relief cavity3 Station, Parallel circuit with relief cavity
Mounting Hole Thread	M8x1.25 - 6HM8x1.25 - 6H
Mounting Hole Depth	.44 in.11.1 mm
Mounting Hole Quantity	44
Open Cavities	11
Cavity	T-3A
Port Size	1/2" BSPP1/2" BSPP

Show FAQ

Why does Sun use 6061 aluminum?	6061-T651 is relatively strong, relatively inexpensive, difficult to machine, readily available in all shapes and sizes and very corrosion resistant. 2024 is stronger and machines beautifully, but is expensive and falls to pieces in a corrosive environment.
Why doesn't Sun anodize their aluminum bodies?	Reasons to anodize: To increase corrosion resistance. Sun uses 6061-T651 aluminum. It is one of the most corrosion resistant aluminum alloys there is. Whether or not anodizing improves the corrosion resistance of 6061 aluminum is debatable. We have yet to have a manifold returned because of corrosion. Appearance (color). The 2 colors that would appeal to Sun would be blue or black. Unfortunately these are the colors that are hardest to do consistently. To provide a hard wear surface. Sun does not make parts-in-body valves. The manifold is just plumbing. We don't need a wear surface. Because everyone else does it. Bad reason. Reasons to not anodize: Cost. It's another process. Logistics. When you make tens of thousands of manifolds a month and you anodize hundreds, it's a problem. Consistency. See above. Stamping. After a body is anodized you cannot do any more stamping without making a mess.Inspection. Have you ever tried to look for burrs in a black anodized body? It's the old blackboard factory at night scenario. Torque. You will experience an increase in breakaway torque when removing items from an anodized manifold. Fatigue life. This is the best reason to not anodize. Fatigue failure is a very complex phenomenon. What it takes to initiate a crack is difficult to predict. What it takes to propagate a crack is readily defined. Anodizing produces a very thin, very hard, and very brittle surface on aluminum. The first time you pressurize an anodized aluminum manifold you have initiated fatigue cracks. Whether or not the stress is enough to propagate the cracks is a matter of pressure and manifold geometry. Anodizing an aluminum manifold grossly reduces the fatigue life by anywhere from 20% to 50%.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.

Additional Resources

Notes:

For mounting bracket information, see catalog or drawing 991-021-***
Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
