SUN HYDRAULICS
U9W

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

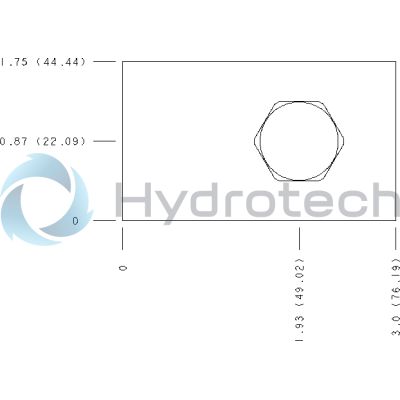

The Sun Hydraulics U9W (Material Number: U9W) is a versatile line mount manifold designed to accommodate both solenoid operated and electroproportional cartridges. It features a ninety-degree configuration with a reverse flow check, making it suitable for applications requiring efficient directional control and flow regulation. The manifold is engineered with extra material around the cavity to provide necessary coil clearance and includes the spotface needed for Sun's weatherized coil, ensuring reliable performance in various environmental conditions. It accepts standard and weatherized coils, enhancing its adaptability across different systems. Constructed from 6061T651 aluminum, the U9W manifold offers excellent corrosion resistance without the need for anodizing, which could compromise its fatigue life. The manifold includes two mounting holes with a diameter of 0.34 inches (8.6 mm) that extend through the body, allowing secure installation with ease. It features one open cavity compatible with T-13A cartridges and has SAE 8 port sizes, providing flexibility in hydraulic connections. This product is particularly useful in hydraulic systems where space constraints or specific directional flow requirements are present. Its robust construction ensures durability even under pressures up to 3000 psi (210 bar), although it is important to consider system pressure limitations due to the aluminum material used. Overall, the Sun Hydraulics U9W manifold provides an effective solution for integrating solenoid-operated controls within hydraulic circuits while maintaining reliability and performance under demanding conditions.
