SUN HYDRAULICS
U7U/S
$743.00 USD
Tags:
- SUN HYDRAULICS
- Material:U7U/S
- Summary:Manifold
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

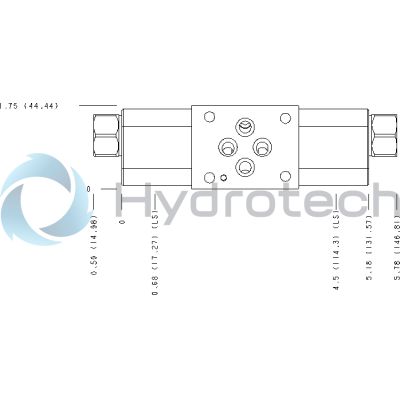

The Sun Hydraulics U7U/S (Material Number: U7U/S) is a high-quality sandwich manifold designed for use in hydraulic systems. It features a cushion lock body type and conforms to the ISO 03 interface standards, making it compatible with a wide range of hydraulic components and systems. The manifold has a stack height of 2.44 inches (62 mm) and incorporates two open cavities, identified as T-11A, which allow for versatile configuration in hydraulic circuits. This product is crafted from 6061-T651 aluminum, known for its excellent corrosion resistance and durability in demanding environments. The design does not include anodizing, as the natural properties of the aluminum provide sufficient protection against corrosion while maintaining structural integrity under pressure. The U7U/S model is particularly suitable for applications requiring reliable cushioning and locking functions within compact hydraulic systems. Its design facilitates easy integration into existing setups, providing efficient flow control without compromising system performance. The rectangular boss with radiused corners enhances the aesthetic appeal while ensuring functional compatibility when stacked with other sandwich manifolds. When assembling stacks of these sandwich valves, it is crucial to ensure dry o-ring sealing surfaces to prevent fluid leakage and maintain optimal system performance. The manifold's pressure rating should be carefully considered, as aluminum constructions are not recommended for pressures exceeding 3000 psi (210 bar). This product offers flexibility and reliability for various hydraulic applications where space and efficiency are critical factors.
The Sun Hydraulics U7U/S (Material Number: U7U/S) is a high-quality sandwich manifold designed for use in hydraulic systems. It features a cushion lock body type and conforms to the ISO 03 interface standards, making it compatible with a wide range of hydraulic components and systems. The manifold has a stack height of 2.44 inches (62 mm) and incorporates two open cavities, identified as T-11A, which allow for versatile configuration in hydraulic circuits. This product is crafted from 6061-T651 aluminum, known for its excellent corrosion resistance and durability in demanding environments. The design does not include anodizing, as the natural properties of the aluminum provide sufficient protection against corrosion while maintaining structural integrity under pressure. The U7U/S model is particularly suitable for applications requiring reliable cushioning and locking functions within compact hydraulic systems. Its design facilitates easy integration into existing setups, providing efficient flow control without compromising system performance. The rectangular boss with radiused corners enhances the aesthetic appeal while ensuring functional compatibility when stacked with other sandwich manifolds. When assembling stacks of these sandwich valves, it is crucial to ensure dry o-ring sealing surfaces to prevent fluid leakage and maintain optimal system performance. The manifold's pressure rating should be carefully considered, as aluminum constructions are not recommended for pressures exceeding 3000 psi (210 bar). This product offers flexibility and reliability for various hydraulic applications where space and efficiency are critical factors.
Body Type | SandwichSandwich |
Interface | ISO 03ISO 03 |
Body Features | Cushion lockCushion lock |
Stack Height | 2.44 in.62 mm |
Open Cavities | 22 |
Cavity | T-11A |
Show FAQ
Additional Resources
- Sun Sandwich Bodies Interchangeable with Bosch and Others
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Mounting and Assembly of Sandwich Bodies
- Manufacturing Sun Cartridge Cavities
- QuickDesign & SunDesign: Sun's 3- & 5-Axis Solutions
- Manifolds: Materials of Construction
- Sun's Floating Style Screw-In Cartridge
- Sun Model Code Explanation; 999-901-334
- Fluid and Temperature Recommendations
- Custom Integrated Packages from Sun
Notes:
- Important: Carefully consider the maximum system pressure. The pressure rating of the manifold is dependent on the manifold material, with the port type/size a secondary consideration. Manifolds constructed of aluminum are not rated for pressures higher than 3000 psi (210 bar), regardless of the port type/size specified.
