SUN HYDRAULICS
SXEACAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

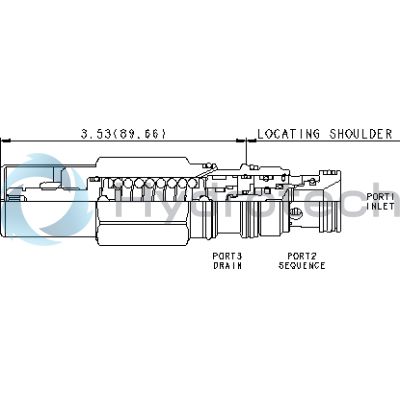

The Sun Hydraulics SXEACAN (SXEACAN) is a direct-acting sequence valve designed to regulate flow to a secondary circuit when the inlet port 1 pressure surpasses the valve setting. This three-port sequence cartridge is interchangeable with others of the same frame size, ensuring compatibility and ease of replacement. Featuring zero pilot flow, it requires port 3 to be connected for maintaining a pressure reference in the control chamber; blocking this port can lead to malfunction due to seal weepage. The pressure at port 3 adds directly to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). This valve is ideal for load-holding applications and incorporates Sun\u2019s floating style construction, minimizing internal part binding risks from excessive torque or machining variations. It has a capacity of 30 gpm (120 L/min) and operates at a maximum pressure of 5000 psi (350 bar). Typical response time is around 2 ms, with maximum valve leakage at reseat being 10 drops/min (0.7 cc/min). The adjustment requires up to four clockwise turns for increased settings, with specific torque requirements for installation and locknut adjustments. The model weighs approximately 0.60 lb (0.30 kg) and uses Viton seal kits, providing reliable performance in various hydraulic systems where precise pressure control is essential.
