SUN HYDRAULICS
SQHBQWV
$291.10 USD
Tags:
- SUN HYDRAULICS
- Material:SQHBQWV
- Model:SQHB-QWV
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics SQHBQWV (SQHBQWV) is a high-performance kickdown sequence valve designed to open completely and maintain an open state once the inlet pressure at port 1 surpasses the valve's preset threshold, allowing unrestricted flow from port 1 to port 2. This valve remains open as long as the pressure at port 1 is greater than at port 2. To reset, the pressure at port 1 must drop below the valve setting, flow from port 1 to port 2 must stop, and pressure at port 2 should be equal to or greater than that at port 1. It features physical and functional interchangeability with all three-port sequence cartridges of a given frame size. The main stage orifice is safeguarded by a durable 150-micron stainless steel screen. It should not be employed in load-holding applications due to its operational characteristics. The valve's maximum operating pressure is rated at 5000 psi (350 bar), with a capacity of handling up to 60 gpm (240 L/min). Its response time is typically around 25 milliseconds, with maximum leakage specified at four cubic inches per minute (65 cc/min) under certain conditions. The adjustment mechanism allows for up to five clockwise turns to increase the setting, and it incorporates Sun's floating style construction, which minimizes internal part binding risks due to excessive installation torque or machining variations. Designed for actuator-side system use, it requires cessation of flow through the valve for resetting; if applied on the pump side, pump flow must be stopped for reset purposes. The installation requires specific torques: valve hex size is 1\u00bc inches (31.8 mm), with installation torque between 150-160 lbf-ft (203-217 Nm). The adjustment screw internal hex size is ^5/32 inches (4 mm), and locknut hex size is ^9/16 inches (15 mm), requiring torque between 80-90 lbf-in (9-10 Nm). The model weighs approximately 1.50 lb (0.70 kg) and uses Viton seal kits for reliable performance in various hydraulic systems.
The Sun Hydraulics SQHBQWV (SQHBQWV) is a high-performance kickdown sequence valve designed to open completely and maintain an open state once the inlet pressure at port 1 surpasses the valve's preset threshold, allowing unrestricted flow from port 1 to port 2. This valve remains open as long as the pressure at port 1 is greater than at port 2. To reset, the pressure at port 1 must drop below the valve setting, flow from port 1 to port 2 must stop, and pressure at port 2 should be equal to or greater than that at port 1. It features physical and functional interchangeability with all three-port sequence cartridges of a given frame size. The main stage orifice is safeguarded by a durable 150-micron stainless steel screen. It should not be employed in load-holding applications due to its operational characteristics. The valve's maximum operating pressure is rated at 5000 psi (350 bar), with a capacity of handling up to 60 gpm (240 L/min). Its response time is typically around 25 milliseconds, with maximum leakage specified at four cubic inches per minute (65 cc/min) under certain conditions. The adjustment mechanism allows for up to five clockwise turns to increase the setting, and it incorporates Sun's floating style construction, which minimizes internal part binding risks due to excessive installation torque or machining variations. Designed for actuator-side system use, it requires cessation of flow through the valve for resetting; if applied on the pump side, pump flow must be stopped for reset purposes. The installation requires specific torques: valve hex size is 1\u00bc inches (31.8 mm), with installation torque between 150-160 lbf-ft (203-217 Nm). The adjustment screw internal hex size is ^5/32 inches (4 mm), and locknut hex size is ^9/16 inches (15 mm), requiring torque between 80-90 lbf-in (9-10 Nm). The model weighs approximately 1.50 lb (0.70 kg) and uses Viton seal kits for reliable performance in various hydraulic systems.

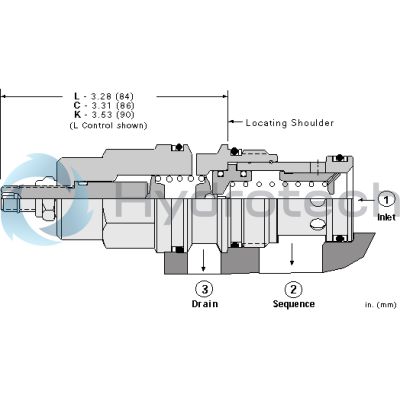

Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Should not be used in load holding applications.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-17A |
| Series | 3 |
| Capacity | 60 gpm240 L/min. |
| Factory Pressure Settings Established at | Kick down pointKick down point |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 25 ms25 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 4 in³/min.65 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/4 in.31,8 mm |
| Valve Installation Torque | 150 - 160 lbf ft203 - 217 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | 1.50 lb0,70 kg |
| Seal kit - Cartridge | Viton: 990-017-006 |
