SUN HYDRAULICS
SQFBJNV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

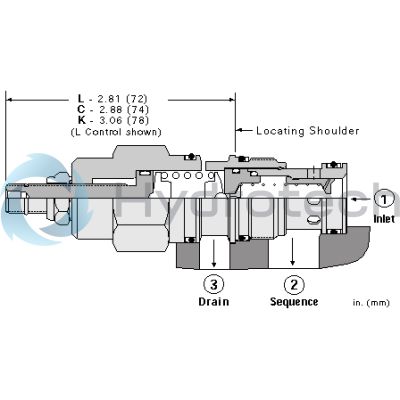

The Sun Hydraulics SQFBJNV (SQFBJNV) is a kickdown sequence valve designed to kick completely open and maintain an unrestricted flow path from port 1 to port 2 once the pressure at the inlet port 1 surpasses the valve setting. This feature ensures that the valve remains open as long as the pressure at port 1 exceeds that at port 2. To reset, the pressure at port 1 must drop below the valve's setting, and flow from port 1 to port 2 must stop, with pressure at port 2 equaling or exceeding that of port 1. This model is part of a series where all three-port sequence cartridges are interchangeable in terms of flow path and cavity for a given frame size. It is crucial not to use this valve in load-holding applications. The main stage orifice has a protective stainless steel screen with a 150-micron rating. The pressure at drain port 3 directly adds to the valve setting on a one-to-one basis but should not exceed 5000 psi (350 bar). The SQFBJNV is intended for use on the actuator side of systems because flow through the valve must cease for resetting; if used on the pump side, pump flow must be stopped for resetting. It features Sun's floating-style construction, minimizing internal binding due to excessive torque or machining variations. The capacity stands at 30 gpm (120 L/min), with factory pressure settings established at kickdown points and maximum operating pressure reaching up to 5000 psi (350 bar). Typical response time is around 25 ms, with maximum leakage rated at approximately 3 in\u00b3/min (50 cc/min) under specific conditions. Adjustment involves up to five turns clockwise for increased settings, with installation torque ranging from 45-50 lbf ft (61-68 Nm).
