SUN HYDRAULICS
SQDBLAN
$93.80 USD
Tags:
- SUN HYDRAULICS
- Material:SQDBLAN
- Model:SQDB-LAN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics SQDBLAN (SQDBLAN) is a specialized kickdown sequence valve designed to facilitate fluid flow in hydraulic systems. This valve is engineered to kick completely open and maintain an unrestricted flow path from port 1 to port 2 once the inlet pressure surpasses the preset threshold, which is influenced by the drain port 3. The valve remains open as long as the pressure at port 1 exceeds that at port 2. To reset, the pressure at port 1 must drop below the set value, flow from port 1 to port 2 must stop, and pressure at port 2 should be equal to or greater than that at port 1. It features a corrosion-resistant design with options for external stainless steel or zinc-nickel plated components. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen, ensuring durability in various environments. This valve is not suitable for load holding applications and is intended for actuator-side installations in hydraulic systems where flow cessation allows for reset functionality. It operates under a maximum pressure of 5000 psi (350 bar) and offers a typical response time of around 25 milliseconds. The valve's capacity reaches up to 15 gpm (60 L/min), with minimal leakage rates of approximately 2 in\u00b3/min (30 cc/min) at specific viscosities. The SQDBLAN model incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or machining variations. Installation specifications include a hex size of .78 inches (22.2 mm), installation torque between 30-35 lbf ft (41-47 Nm), and adjustment capabilities via an internal hex screw with five clockwise turns needed to increase settings. This model weighs approximately .40 lb (.20 kg) and comes with a Viton seal kit option for enhanced performance reliability in demanding applications.
The Sun Hydraulics SQDBLAN (SQDBLAN) is a specialized kickdown sequence valve designed to facilitate fluid flow in hydraulic systems. This valve is engineered to kick completely open and maintain an unrestricted flow path from port 1 to port 2 once the inlet pressure surpasses the preset threshold, which is influenced by the drain port 3. The valve remains open as long as the pressure at port 1 exceeds that at port 2. To reset, the pressure at port 1 must drop below the set value, flow from port 1 to port 2 must stop, and pressure at port 2 should be equal to or greater than that at port 1. It features a corrosion-resistant design with options for external stainless steel or zinc-nickel plated components. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen, ensuring durability in various environments. This valve is not suitable for load holding applications and is intended for actuator-side installations in hydraulic systems where flow cessation allows for reset functionality. It operates under a maximum pressure of 5000 psi (350 bar) and offers a typical response time of around 25 milliseconds. The valve's capacity reaches up to 15 gpm (60 L/min), with minimal leakage rates of approximately 2 in\u00b3/min (30 cc/min) at specific viscosities. The SQDBLAN model incorporates Sun's floating style construction to minimize internal part binding due to excessive installation torque or machining variations. Installation specifications include a hex size of .78 inches (22.2 mm), installation torque between 30-35 lbf ft (41-47 Nm), and adjustment capabilities via an internal hex screw with five clockwise turns needed to increase settings. This model weighs approximately .40 lb (.20 kg) and comes with a Viton seal kit option for enhanced performance reliability in demanding applications.

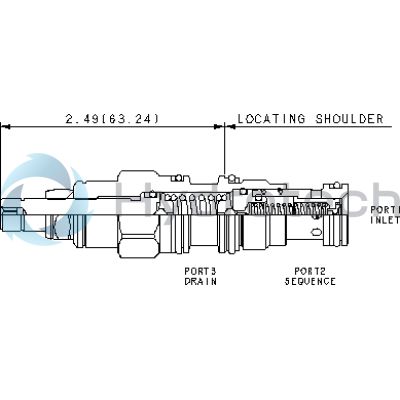

Kick-down sequence valves will kick completely open and remain open once the pressure at the inlet (port 1) exceeds the valve setting, creating an unrestricted flow path from port 1 to port 2 (sequence). The pressure setting at port 1 is relative to the drain (port 3). The valve remains open as long as the pressure at port 1 exceeds the pressure at port 2. To reset the valve, pressure at port 1 must fall below the setting of the valve, flow from port 1 to port 2 must cease, and pressure at port 2 must be equal to or greater than the pressure at port 1.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Should not be used in load holding applications.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Intended for use on the actuator side of the system as flow through the valve must cease for the valve to reset. If used on the pump side of a system, pump flow must be shut off for the valve to reset.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-11A |
| Series | 1 |
| Capacity | 15 gpm60 L/min. |
| Factory Pressure Settings Established at | Kick down pointKick down point |
| Maximum Operating Pressure | 5000 psi350 bar |
| Response Time - Typical | 25 ms25 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 2 in³/min.30 cc/min. |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 7/8 in.22,2 mm |
| Valve Installation Torque | 30 - 35 lbf ft41 - 47 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .40 lb0,20 kg |
| Seal kit - Cartridge | Viton: 990-011-006 |
Show FAQ
Additional Resources
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Sequence Valves Technical Tips
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
