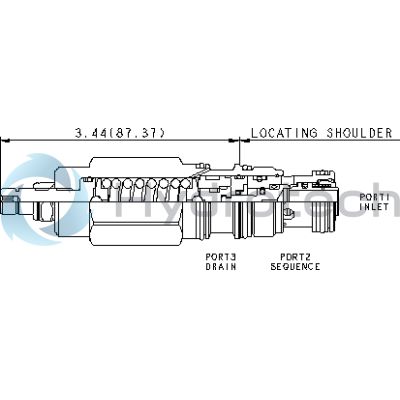

The Sun Hydraulics SCEALAN (SCEALAN) is a direct-acting sequence valve with a reverse flow check, designed to supply a secondary circuit with flow once the pressure at inlet port 1 exceeds the valve setting. This model integrates an integral check valve that allows reverse flow from port 2 to port 1. The sequence valve's pressure setting controls the pressure at port 1 relative to the drain port 3, which must be connected to maintain a proper pressure reference in the control chamber. The pressure at port 3 is additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar). This valve is well-suited for load holding applications and features Sun's floating style construction, minimizing binding risks due to excessive installation torque or machining variations. The SCEALAN model has a capacity of 30 gpm (120 L/min) and operates at a maximum pressure of 5000 psi (350 bar). It features typical response times of approximately 2 ms and maximum valve leakage upon reseat of about 10 drops/min (0.7 cc/min). The check cracking pressure is set at 25 psi (1.7 bar), with adjustments made by turning clockwise up to five full turns for increased settings. Installation requires specific torques: valve hex size is 1-1/8 in. (28.6 mm) with an installation torque between 45-50 lbf-ft (61-68 Nm), and locknut hex size is 9/16 in. (15 mm) requiring torque between 80-90 lbf-in (9-10 Nm). Weighing only .60 lb (.30 kg), this model uses Viton seal kits, ensuring robust performance across varied hydraulic applications.
