SUN HYDRAULICS
RVESKBN

$142.20 USD

Tags:

SUN HYDRAULICS
Material:RVESKBN
Model:RVES-KBN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVESKBN (RVESKBN) is a ventable, pilot-operated, balanced-poppet relief cartridge designed for precise pressure regulation in hydraulic systems. This normally closed valve features a unique design that opens to the tank port when the inlet pressure reaches the preset level, effectively throttling flow to maintain desired pressure levels. It includes a vent port for remote control capabilities, making it ideal for load-holding applications where zero leak is crucial on the vent port. The RVESKBN excels in performance with its low pressure rise versus flow characteristics and operates smoothly and quietly, minimizing issues like cavitation noise and manifold erosion. The valve is robust enough to handle maximum pressures at port 2, making it suitable for cross-port relief circuits. It exhibits resilience against varying oil temperatures and contamination due to its construction, which includes a 150-micron stainless steel screen protecting the main stage orifice. Notably, back pressure on the tank port directly affects the valve setting at a 1:1 ratio. The floating style construction minimizes risks of internal binding caused by installation torque or machining variations. With a capacity of 25 gpm (95 L/min) and maximum operating pressure of 5000 psi (350 bar), this cartridge offers reliable performance with typical response times of around 2 milliseconds. The valve allows for adjustments via an internal hex screw, providing flexibility in operation settings. Weighing approximately 1.60 lb (0.70 kg), it can be installed with ease using specified torque settings to ensure optimal performance and longevity in demanding hydraulic applications.

Description

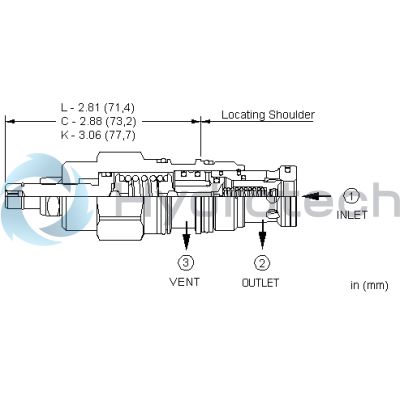

Ventable, pilot-operated, balanced-poppet relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

Because the modulating occurs inside the cartridge, these valves are immune to most of the problems associated with cavitation, namely noise and manifold erosion.
Suitable for use in load holding applications, providing that any valving on the vent port (port 3) is zero leak.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits.
A remote pilot relief on port 3 (vent) will control the valve below its own setting.
Valve is relatively insensitive to varying oil temperatures and oil borne contamination.
Main stage orifice is protected by a 150 micron stainless steel screen.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-2A
Series	2
Capacity	25 gpm95 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	15 - 20 in³/min.0,25 - 0,33 L/min.
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at Reseat	10 drops/min.0,7 cc/min.
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/8 in.28,6 mm
Valve Installation Torque	45 - 50 lbf ft61 - 68 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.60 lb0,70 kg
Seal kit - Cartridge	Viton: 990-402-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
