RVCALCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

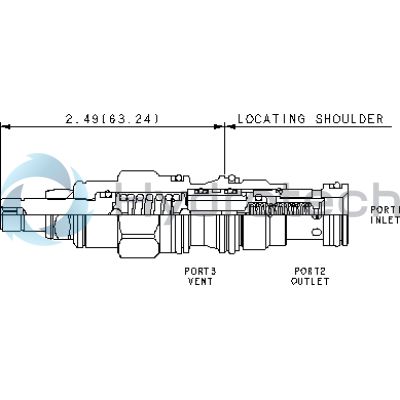

The Sun Hydraulics RVCALCN (RVCALCN) is a ventable, pilot-operated, balanced piston relief cartridge designed for precise pressure regulation. This valve remains normally closed and begins to open when the inlet port 1 pressure reaches the set threshold, directing flow to tank port 2 and regulating pressure effectively. It features a vent port 3 that allows remote control via other pilot or two-way valves. Known for its accuracy, low-pressure rise versus flow, smooth operation, and moderate speed, this valve is suitable for applications requiring cross-port relief circuits but not recommended for load-holding due to spool leakage. The RVCALCN can handle maximum pressure at port 2 and incorporates a main stage orifice protected by a 150-micron stainless steel screen. Back pressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. Cartridges with EPDM seals are compatible with phosphate ester fluids but should avoid petroleum-based substances. The valve uses Sun's floating style construction to reduce internal binding risks due to installation torque or machining variations. It fits into Cavity T-11A Series 1 with a capacity of up to 15 gpm (60 L/min) and operates at a maximum pressure of 5000 psi (350 bar). The control pilot flow ranges between 7 - 10 in\u00b3/min (0.11 - 0.16 L/min), with typical response times around 10 ms. Maximum leakage is limited to 2 in\u00b3/min at 1000 psi (30 cc/min at 70 bar). Adjustment involves up to five clockwise turns, with specific torque requirements for installation and locknut settings provided for optimal performance. A Viton seal kit (990011006) is available for maintenance needs.
