SUN HYDRAULICS
RVBACAN

$82.50 USD

Tags:

SUN HYDRAULICS
Material:RVBACAN
Model:RVBA-CAN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RVBACAN (Material Number: RVBACAN) is a ventable, pilot-operated, balanced piston relief cartridge designed for pressure regulation. This valve is normally closed and begins to open to tank port 2 when the inlet port 1 pressure reaches the set level, thus throttling flow to regulate pressure. It includes a vent port (port 3) allowing for remote control by other pilot or two-way valves. Known for its accuracy and low pressure rise versus flow, this valve operates smoothly and quietly with moderate speed. It is suitable for cross port relief circuits due to its ability to accept maximum pressure at port 2; however, it is not recommended for load holding applications because of spool leakage. The minimum setting across all spring ranges is 75 psi (5 bar), and back pressure on the tank port directly adds to the valve setting at a 1:1 ratio. The main stage orifice is contamination-protected, and its floating style construction minimizes internal parts binding due to excessive torque or machining variations. This cartridge fits into Cavity T-163A Series 0 and has a flow capacity of up to 7.5 gpm (30 L/min). Its maximum operating pressure is rated at 5000 psi (350 bar), with a control pilot flow of 7-10 in\u00b3/min (.11-.16 L/min). Typical response time is about 10 ms, with maximum valve leakage at specified conditions being approximately 2 in\u00b3/min (30 cc/min). The adjustment mechanism allows up to five clockwise turns for increasing settings, utilizing internal hex sizes of both screw and locknut at specific dimensions. Its installation requires specific torque values as well. Weighing .30 lb (.15 kg), it also comes with an optional Viton seal kit identified by part number 990163006.

Description

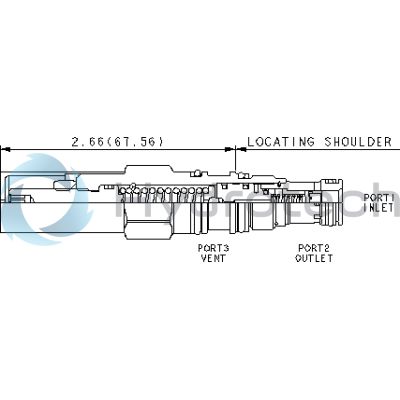

Ventable, pilot-operated, balanced piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. They provide a vent port (port 3) that connects between the main piston and pilot stage to provide for remote control by other pilot or 2-way valves. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

A remote pilot relief on port 3 (vent) will control the valve below its own setting.
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Minimum setting is 75 psi (5 bar) for all spring ranges.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
The main stage orifice is protected against contamination.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-163A
Series	0
Capacity	7.5 gpm30 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Control Pilot Flow	7 - 10 in³/min.0,11 - 0,16 L/min.
Response Time - Typical	10 ms10 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	2 in³/min.@1000 psi30 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	3/4 in.19,1 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.30 lb0,15 kg
Seal kit - Cartridge	Viton: 990-163-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
