SUN HYDRAULICS
RSJCKCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

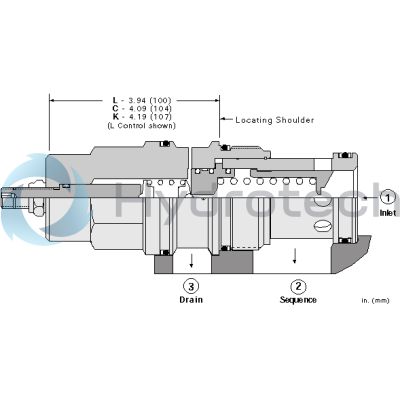

The Sun Hydraulics RSJCKCV (RSJCKCV) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the pressure at the inlet port 1 surpasses the valve setting. This valve effectively manages pressure at port 1 relative to the drain port 3, remaining insensitive to back pressure at port 2 up to the valve setting. It can regulate pressure in place of two-port relief valves when there is return line pressure. All three-port sequence cartridges are interchangeable, sharing identical flow paths and cavity dimensions for a given frame size. The pilot flow increases as the inlet pressure at port 1 rises above the valve setting relative to port 3. The main stage orifice is shielded by a 150-micron stainless steel screen for enhanced protection. The RSJCKCV model features a maximum operating pressure of 5000 psi (350 bar), with pilot flow control ranging from 15 to 20 in\u00b3/min (0.25 to 0.33 L/min) and typical response time of approximately 10 milliseconds. However, it is not suitable for load-holding applications due to spool leakage. Adjustment is facilitated by W and Y controls, allowing full-range adjustability unless specified otherwise for special settings. The valve incorporates Sun's floating style construction, reducing internal part binding risks from excessive installation torque or machining variations. Additional specifications include a capacity of 120 gpm (480 L/min), maximum valve leakage of up to five in\u00b3/min at 1000 psi (80 cc/min at 70 bar), and an installation torque range of 350-375 lbf ft (474-508 Nm). It comes with a factory-set pressure established at four gpm (15 L/min). The model weighs approximately 3.10 lb (1.40 kg) and includes an internal hex size adjustment screw measuring ^5/32 inches (4 mm).
