The Sun Hydraulics RSFCFPN (RSFCFPN) is a pilot-operated, balanced piston sequence valve designed to provide flow to a secondary circuit once the pressure at inlet port 1 surpasses the valve setting. This valve controls the pressure at port 1 relative to the pressure at drain port 3 and is insensitive to back pressure at port 2 up to the valve setting. It can be used as an alternative to two-port relief valves when there is pressure in the return line. The RSFCFPN features interchangeable three-port sequence cartridges, maintaining consistent flow paths and cavity compatibility for given frame sizes. The pilot flow increases with rising inlet pressure relative to drain pressure beyond the valve setting, and a 150-micron stainless steel screen protects the main stage orifice. Pressure at port 3 adds directly to the valve setting in a 1:1 ratio, with a maximum allowable pressure of 5000 psi (350 bar). This model is not suitable for load-holding applications due to spool leakage. The RSFCFPN supports W and Y controls, with or without special settings; without them, it's adjustable throughout its range using these controls. With EPDM seals, it is compatible with phosphate ester fluids but not petroleum-based fluids. The floating style construction minimizes internal part binding from excessive installation torque or machining variations. It fits into Cavity T-2A Series 2 and has a capacity of 30 gpm (120 L/min) with factory settings established at 4 gpm (15 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with control pilot flow between 10-15 in\u00b3/min (0.16-0.25 L/min). Typical response time is around 10 ms, and maximum leakage is specified as 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar).
The Sun Hydraulics RSFCFPN (RSFCFPN) is a pilot-operated, balanced piston sequence valve designed to provide flow to a secondary circuit once the pressure at inlet port 1 surpasses the valve setting. This valve controls the pressure at port 1 relative to the pressure at drain port 3 and is insensitive to back pressure at port 2 up to the valve setting. It can be used as an alternative to two-port relief valves when there is pressure in the return line. The RSFCFPN features interchangeable three-port sequence cartridges, maintaining consistent flow paths and cavity compatibility for given frame sizes. The pilot flow increases with rising inlet pressure relative to drain pressure beyond the valve setting, and a 150-micron stainless steel screen protects the main stage orifice. Pressure at port 3 adds directly to the valve setting in a 1:1 ratio, with a maximum allowable pressure of 5000 psi (350 bar). This model is not suitable for load-holding applications due to spool leakage. The RSFCFPN supports W and Y controls, with or without special settings; without them, it's adjustable throughout its range using these controls. With EPDM seals, it is compatible with phosphate ester fluids but not petroleum-based fluids. The floating style construction minimizes internal part binding from excessive installation torque or machining variations. It fits into Cavity T-2A Series 2 and has a capacity of 30 gpm (120 L/min) with factory settings established at 4 gpm (15 L/min). The maximum operating pressure is rated at 5000 psi (350 bar), with control pilot flow between 10-15 in\u00b3/min (0.16-0.25 L/min). Typical response time is around 10 ms, and maximum leakage is specified as 3 in\u00b3/min at 1000 psi (50 cc/min at 70 bar).

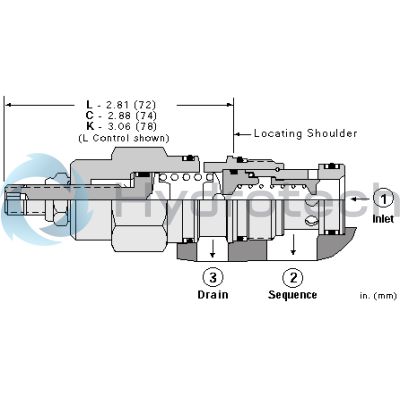

Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 10 - 15 in³/min.0,16 - 0,25 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
