SUN HYDRAULICS
RSFCCPV/AP
$402.70 USD
Tags:
- SUN HYDRAULICS
- Material:RSFCCPV/AP
- Model:RSFC-CPV/AP
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RSFCCPV/AP (RSFCCPV/AP) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet port 1 pressure exceeds the valve setting. It effectively controls the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. These sequence valves can replace 2-port relief valves for pressure regulation if there is return line pressure. The RSFCCPV/AP model features interchangeable 3-port sequence cartridges, maintaining consistent flow paths and cavity dimensions across frame sizes. As inlet pressure at port 1 increases relative to drain port 3 beyond the valve setting, pilot flow continues to rise. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen. Pressure at port 3 adds directly to the valve setting at a 1:1 ratio, with a maximum limit of 5000 psi (350 bar). Due to spool leakage, this model is unsuitable for load-holding applications. The W and Y controls allow full-range adjustment unless a special setting specifies otherwise, which then acts as the maximum limit. Cartridges with EPDM seals are compatible with phosphate ester fluids but may degrade when exposed to petroleum-based substances. Incorporating Sun's floating style construction minimizes internal part binding from excessive installation torque or machining variations. The RSFCCPV/AP has a capacity of up to 30 gpm (120 L/min) and operates under pressures up to 5000 psi (350 bar). Its response time is typically around 10 ms, with maximum leakage of approximately three in\u00b3/min at specified conditions. The adjustment screw features an internal hex size of ^5/32 inches (4 mm), while installation requires a torque of between 45 - 50 lbf\u00b7ft (61 - 68 Nm).
The Sun Hydraulics RSFCCPV/AP (RSFCCPV/AP) is a pilot-operated, balanced piston sequence valve designed to supply a secondary circuit with flow once the inlet port 1 pressure exceeds the valve setting. It effectively controls the pressure at port 1 relative to the drain port 3, remaining unaffected by back pressure at port 2 up to the valve setting. These sequence valves can replace 2-port relief valves for pressure regulation if there is return line pressure. The RSFCCPV/AP model features interchangeable 3-port sequence cartridges, maintaining consistent flow paths and cavity dimensions across frame sizes. As inlet pressure at port 1 increases relative to drain port 3 beyond the valve setting, pilot flow continues to rise. The main stage orifice is safeguarded by a robust 150-micron stainless steel screen. Pressure at port 3 adds directly to the valve setting at a 1:1 ratio, with a maximum limit of 5000 psi (350 bar). Due to spool leakage, this model is unsuitable for load-holding applications. The W and Y controls allow full-range adjustment unless a special setting specifies otherwise, which then acts as the maximum limit. Cartridges with EPDM seals are compatible with phosphate ester fluids but may degrade when exposed to petroleum-based substances. Incorporating Sun's floating style construction minimizes internal part binding from excessive installation torque or machining variations. The RSFCCPV/AP has a capacity of up to 30 gpm (120 L/min) and operates under pressures up to 5000 psi (350 bar). Its response time is typically around 10 ms, with maximum leakage of approximately three in\u00b3/min at specified conditions. The adjustment screw features an internal hex size of ^5/32 inches (4 mm), while installation requires a torque of between 45 - 50 lbf\u00b7ft (61 - 68 Nm).

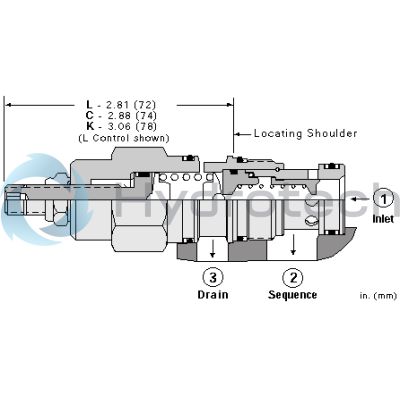

Pilot-operated, balanced piston sequence valves will supply a secondary circuit with flow once the pressure at the inlet (port 1) has exceeded the valve setting. The pressure setting of a sequence valve controls the pressure at port 1 relative to the pressure at the drain (port 3). These valves are insensitive to back pressure at port 2 (sequence), up to the valve setting. They may be used to regulate pressure in place of 2-port relief valves if there is pressure in the return line.
- All 3 port sequence cartridges are physically and functionally interchangeable (i.e. same flow path, same cavity for a given frame size).
- Pilot flow continues to increase as the pressure at port 1 (inlet), relative to the pressure at port 3 (drain), rises above the valve setting.
- The main stage orifice is protected by a 150 micron stainless steel screen.
- Pressure at port 3 is directly additive to the valve setting at a 1:1 ratio and should not exceed 5000 psi (350 bar).
- Not suitable for use in load holding applications due to spool leakage.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.
| Cavity | T-2A |
| Series | 2 |
| Capacity | 30 gpm120 L/min. |
| Factory Pressure Settings Established at | 4 gpm15 L/min. |
| Maximum Operating Pressure | 5000 psi350 bar |
| Control Pilot Flow | 10 - 15 in³/min.0,16 - 0,25 L/min. |
| Response Time - Typical | 10 ms10 ms |
| Maximum Valve Leakage at 110 SUS (24 cSt) | 3 in³/min.@1000 psi50 cc/min.@70 bar |
| Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
| Valve Hex Size | 1 1/8 in.28,6 mm |
| Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
| Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
| Locknut Hex Size | 9/16 in.15 mm |
| Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
| Model Weight | .50 lb0,25 kg |
| Seal kit - Cartridge | Viton: 990-202-006 |
Show FAQ
Additional Resources
- Sequence Valves Technical Tips
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Sun Expands Corrosion-Resistant Solutions
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Sequence Valves
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Sun Model Code Explanation; 999-901-334
- Cavity Information (S-171) and Tooling
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
Notes:
- For Series 1 cartridges configured with an O control (panel mount handknob), a .75 in. (19 mm) diameter hole is required in the panel.
