SUN HYDRAULICS
RPIEQQN

$198.60 USD

Tags:

SUN HYDRAULICS
Material:RPIEQQN
Model:RPIE-QQN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RPIEQQN (RPIEQQN) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. It is a normally closed, pressure-limiting valve that opens to tank port 2 when the inlet port 1 reaches the valve setting, thereby throttling flow to limit pressure rise. This model is known for its rapid response time of approximately 2 ms and low pressure rise versus flow characteristics. It features a main stage orifice protected by a 150-micron stainless steel screen and incorporates Sun's floating style construction to minimize internal binding due to installation torque or machining variations. The RPIEQQN is suitable for cross-port relief circuits with consideration for spool leakage but is not recommended for load-holding applications due to potential leakage. The valve can handle maximum operating pressures up to 5000 psi (350 bar) and has a capacity of 100 gpm (380 L/min). Back pressure on the tank port is directly additive to the valve setting at a 1:1 ratio. The RPIEQQN also includes an adjustment feature with five clockwise turns needed to increase the setting, and it requires specific installation torques for optimal performance. This product weighs approximately 1.20 lb (0.55 kg) and utilizes Viton seal kits available under part number 990016006 for maintenance or replacement needs.

Description

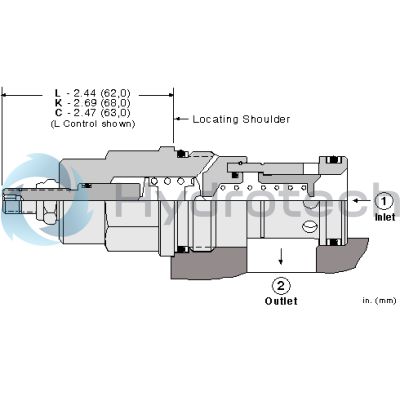

Fast-acting, pilot-operated, balanced piston relief cartridges are normally closed, pressure-limiting valves used to protect hydraulics components from pressure transients. Fast opening and closing is gained at the expense of smoothness. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to limit the pressure rise. These valves have low pressure rise vs. flow and are very fast.

All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Main stage orifice is protected by a 150 micron stainless steel screen.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-16A
Series	3
Capacity	100 gpm380 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	2 ms2 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	4 in³/min.@1000 psi65 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	1 1/4 in.31,8 mm
Valve Installation Torque	150 - 160 lbf ft203 - 217 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	9/16 in.15 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	1.20 lb0,55 kg
Seal kit - Cartridge	Viton: 990-016-006

Show FAQ

Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
