SUN HYDRAULICS
RPGEFSV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

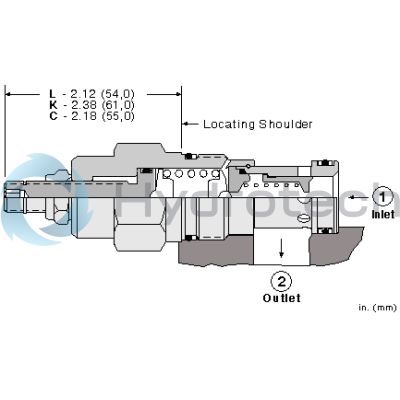

The Sun Hydraulics RPGEFSV (Material Number: RPGEFSV) is a fast-acting, pilot-operated, balanced piston relief cartridge designed to protect hydraulic components from pressure transients. These normally closed, pressure-limiting valves are known for their rapid opening and closing capabilities, though this comes at the expense of smoothness. When the inlet port 1 reaches the set pressure, the valve begins to open to tank port 2, throttling flow to limit any further pressure increase. This model features low pressure rise versus flow and exceptional speed with a typical response time of 2 milliseconds. The valve accepts maximum pressure at port 2, making it suitable for cross-port relief circuits; however, spool leakage should be considered in such applications. It is not recommended for load-holding applications due to potential leakage. The main stage orifice is safeguarded by a 150-micron stainless steel screen, and back pressure on tank port 2 adds directly to the valve setting at a ratio of 1:1. Cartridges with EPDM seals are compatible with phosphate ester fluids but may be damaged by petroleum-based products. The Sun floating style construction minimizes risks of internal part binding due to excessive torque or machining variations during installation. This cartridge fits into a T-3A cavity and belongs to Series 2 with a capacity of up to 50 gpm (200 L/min). It can withstand a maximum operating pressure of 5000 psi (350 bar) and features an adjustment range that allows up to five clockwise turns for setting increases. The valve's hex size is 1-1/8 inches (28.6 mm), requiring an installation torque between 45-50 lbf ft (61-68 Nm). The model weighs approximately .50 lb (.25 kg) and uses Viton seal kits for maintenance purposes.
