SUN HYDRAULICS
RPCCCNN

$58.80 USD

Tags:

SUN HYDRAULICS
Material:RPCCCNN
Model:RPCC-CNN
Summary:Cartridge

Quantity in stock: 0

Note: Sales tax, and shipping will be calculated at checkout.

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

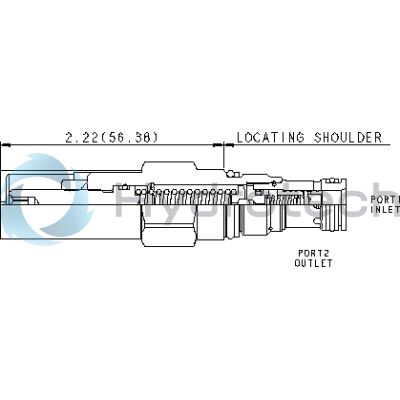

The Sun Hydraulics RPCCCNN (RPCCCNN) is a pilot-operated, balanced piston relief cartridge designed for pressure regulation in hydraulic systems. This normally closed valve opens to the tank port 2 when inlet port 1 pressure reaches the set threshold, effectively throttling flow to maintain desired pressure levels. Known for its accuracy and low pressure rise versus flow characteristics, the RPCCCNN operates smoothly and quietly with moderate response speed. It is interchangeable with other two-port relief cartridges of similar frame size, sharing the same flow path and cavity dimensions. This model can handle maximum pressure at port 2, making it suitable for cross-port relief circuits while considering potential spool leakage. The RPCCCNN has a minimum setting of 75 psi (5 bar) across all spring ranges and is not recommended for load-holding applications due to spool leakage. Backpressure on port 2 directly adds to the valve setting in a 1:1 ratio. The main stage orifice is designed to resist contamination, ensuring reliable performance. Cartridges equipped with EPDM seals are intended for phosphate ester fluid systems only; exposure to petroleum-based substances could damage these seals. Incorporating Sun's floating style construction minimizes risks of internal binding due to installation torque or machining variations. The valve features a capacity of 12 gpm (45 L/min), with factory settings established at 4 gpm (15 L/min). It can withstand a maximum operating pressure of up to 5000 psi (350 bar), with typical response times around 10 ms. Valve installation requires a hex size of 3/4 inch (19.1 mm) and torque between 20-25 lbf ft (27-33 Nm). The adjustment screw uses an internal hex size of 5/32 inch (4 mm), while the locknut requires torque between 80-90 lbf in (9-10 Nm). The model weighs approximately .20 lb (.10 kg), and Viton seal kits are available under part number 990162006.

Description

Pilot-operated, balanced-piston relief cartridges are normally closed pressure regulating valves. When the pressure at the inlet (port 1) reaches the valve setting, the valve starts to open to tank (port 2), throttling flow to regulate the pressure. These valves are accurate, have low pressure rise vs. flow, they are smooth and quiet, and are moderately fast.

All 2-port relief cartridges (except pilot reliefs) are physically and functionally interchangeable (same flow path, same cavity for a given frame size).
Will accept maximum pressure at port 2; suitable for use in cross port relief circuits. If used in cross port relief circuits, consider spool leakage.
Minimum setting is 75 psi (5 bar) for all spring ranges.
Not suitable for use in load holding applications due to spool leakage.
Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
The main stage orifice is protected against contamination.
Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

Cavity	T-162A
Series	0
Capacity	12 gpm45 L/min.
Factory Pressure Settings Established at	4 gpm15 L/min.
Maximum Operating Pressure	5000 psi350 bar
Response Time - Typical	10 ms10 ms
Maximum Valve Leakage at 110 SUS (24 cSt)	2 in³/min.@1000 psi30 cc/min.@70 bar
Adjustment - Number of Clockwise Turns to Increase Setting	55
Valve Hex Size	3/4 in.19,1 mm
Valve Installation Torque	20 - 25 lbf ft27 - 33 Nm
Adjustment Screw Internal Hex Size	5/32 in.4 mm
Locknut Hex Size	1/2 in.12,7 mm
Locknut Torque	80 - 90 lbf in.9 - 10 Nm
Model Weight	.20 lb0,10 kg
Seal kit - Cartridge	Viton: 990-162-006

Show FAQ

What are the tolerances on pressure settings for Sun's pressure control valves?	Pressure setting tolerances are listed in our Performance Data page. A link to this page can also be found in the Additional Resources tab of the applicable product page.
How big is a drop of hydraulic oil?	There are exactly 250 Sun drops in a cubic inch or 15 in a cc.
Can I use a kick-down relief for my system relief?	Maybe not. We build in a good amount of overlap in the kick-down reliefs to prevent false tripping. This means they are not as fast as our standard pilot-operated reliefs. A direct-acting relief valve set just above the kick-down relief valve would be good insurance.
Direct acting or pilot operated - what do I use?	Direct-acting valves are used to prevent over pressure, and pilot-operated valves are used to regulate pressure. If you are unsure, use a direct-acting valve. Sun's direct acting valves are very fast, dirt tolerant, stable, and robust. Sun's pilot-operated valves are moderately fast, they have a low pressure rise vs. flow curve, and they are easy to adjust.
Where would I use a kick-down relief?	One graphic example is on a portable grain auger for silos. When the farmer gets caught in the auger the kick-down relief trips and allows him to escape.
