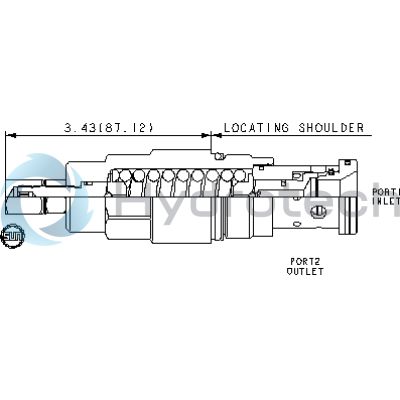

The Sun Hydraulics RDHAQAV (RDHAQAV) is a direct-acting relief cartridge designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve opens to the tank port 2 when the pressure at inlet port 1 reaches the set valve threshold, effectively throttling flow to control pressure rise. Known for its smooth operation and noise-free performance, this valve is essentially zero-leak, dirt-tolerant, and immune to silting while offering rapid response times. It is interchangeable with all other 2-port relief cartridges except pilot reliefs, sharing the same flow path and cavity for identical frame sizes. The RDHAQAV can handle maximum pressure at port 2, making it suitable for cross-port relief circuits and load-holding applications. Its design incorporates Sun's floating style construction to reduce internal part binding due to installation torque or machining variations. The valve shows insensitivity to oil temperature variations and contamination, ensuring reliable performance under diverse conditions. Adjustments require system pressure removal as seals on the adjust screw are exposed to system pressure. The adjustment procedure includes checking the setting, removing pressure, adjusting the valve, and verifying the new setting. For optimal repeatability, select a spring range where desired relief settings are midrange to high between minimum and maximum pressures. Backpressure on tank port 2 directly adds to the valve setting at a 1:1 ratio. With a capacity of up to 100 gpm (380 L/min) and maximum operating pressure of 5000 psi (350 bar), this cartridge offers fast response times typically around 2 ms with minimal leakage at reseat conditions. Installation requires specific torque values for both the valve and locknut adjustments.
