SUN HYDRAULICS
RDBALDV/LH

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

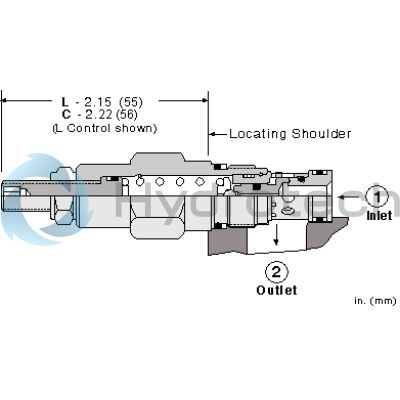

The Sun Hydraulics RDBALDV/LH (RDBALDV/LH) is a direct-acting relief cartridge valve designed to protect hydraulic components from pressure transients. This normally closed, pressure-limiting valve opens to the tank port when the inlet pressure reaches the set threshold, throttling flow to prevent further pressure increase. Notably, it features a smooth and quiet operation with essentially zero leakage, maintaining performance even in the presence of dirt or silting. The valve is physically and functionally interchangeable with other 2-port relief cartridges of the same frame size and flow path, making it versatile for various applications. This model can handle a maximum operating pressure of 5000 psi (350 bar) and has a capacity of 12 gpm (45 L/min). It is suitable for cross-port relief circuits and load-holding applications due to its ability to accept maximum pressure at port 2. The valve's response time is typically 2 ms, ensuring rapid adaptation to changing conditions. Additionally, it exhibits insensitivity to variations in oil temperature and contamination levels. The RDBALDV/LH incorporates Sun's floating style construction, reducing the risk of internal parts binding due to excessive installation torque or machining variations. For optimal performance, users should select a spring range where the desired relief setting falls between midrange and high within its limits. The adjustment process involves removing system pressure before modifying settings, as seals on the adjust screw are exposed during this procedure. With a reseat capability at 85% of its setting and minimal leakage at reseat (10 drops/min), this valve provides reliable protection for hydraulic systems. It comes equipped with EPDM seals suitable for phosphate ester fluids but should not be exposed to petroleum-based substances. Installation requires specific torque values: valve installation at 20-25 lbf ft (27-33 Nm) and locknut torque at 80-90 lbf in (9-10 Nm).
