SUN HYDRAULICS
RBFACWN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

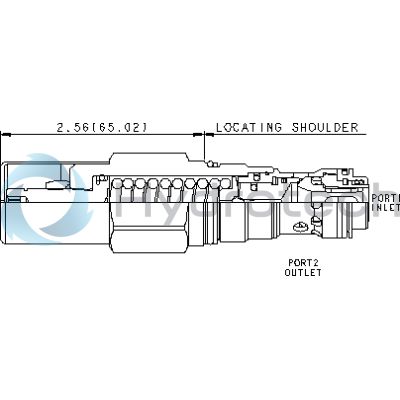

The Sun Hydraulics RBFACWN (RBFACWN) is a bidirectional, direct-acting relief cartridge valve designed to protect hydraulic components from pressure transients by limiting pressure rise when the differential between ports 1 and 2 exceeds the valve setting. This normally closed, pressure-limiting valve features modulating capabilities within the cartridge, making it resistant to cavitation-related issues such as noise and manifold erosion. It is crucial to adjust this valve only when pressure is removed or via port 2, as seals on the adjust screw are exposed to pressure at port 1. The RBFACWN is relatively insensitive to oil temperature fluctuations and contamination, ensuring reliable performance across various conditions. The valve's design incorporates Sun's floating style construction to reduce internal part binding risks due to excessive installation torque or machining variations. With a capacity of 30 gpm (120 L/min) and a maximum operating pressure of 5000 psi (350 bar), this relief cartridge offers a typical response time of 2 ms and minimal leakage at reseat with only 30 drops/minute. It has a reseat percentage of 85% of the setting and hysteresis of approximately 3%. For optimal performance, select a spring range where the desired relief setting is midrange to high between minimum and maximum pressures. The installation requires a torque of 45-50 lbf\u00b7ft (61-68 Nm), with a hex size of 1-1/8 inches (28.6 mm). This product also supports functional interchangeability among all two-port relief cartridges except pilot reliefs, maintaining consistent flow paths and cavity compatibility for given frame sizes.
