SUN HYDRAULICS
RBADLCN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

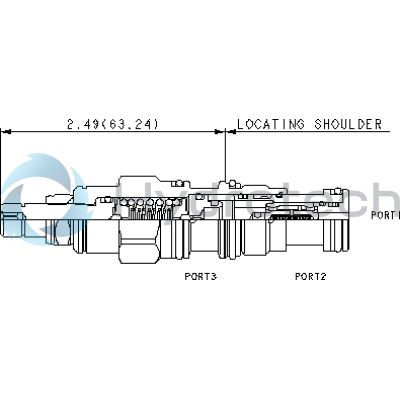

The Sun Hydraulics RBADLCN (RBADLCN) is a direct-acting, pilot relief cartridge valve designed to incorporate back-to-back check valves. This design enables the valve to remotely control two other pilot-operated valves or function as a thermal relief for both ends of an actuator, making it suitable for load holding applications. The valve's capacity is limited to pilot flow, necessitating its use with other valves that have comparable pilot flows. The back-to-back check valves effectively prevent cross talk between the two remote-controlled valves, and a single adjustment can control both valves simultaneously. The check cracking pressure is rated at 15 psi (1 bar), and pressure at port 3 adds directly to the valve setting. This model features Sun's floating style construction, minimizing the risk of internal parts binding due to excessive installation torque or variations in cavity/cartridge machining. It has a cavity size of T-11A, Series 1, with a capacity of 0.25 gpm (1 L/min) and a typical response time of 2 ms. Maximum valve leakage at 110 SUS (24 cSt) is limited to 5 drops/min (0.3 cc/min). Adjustments are made via an internal hex screw with five clockwise turns needed to increase the setting; it also includes a locknut requiring specific torque values for secure installation. The RBADLCN offers robust performance in preventing overpressure due to thermal expansion of fluid and is built with Viton seals for durability under various conditions. It is ideal for applications requiring precise control and reliable performance in hydraulic systems where thermal relief or dual-valve control is necessary.
