SUN HYDRAULICS
RBADLAN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

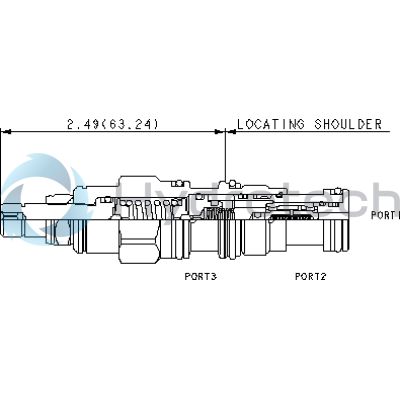

The Sun Hydraulics RBADLAN (Material Number: RBADLAN) is a direct-acting, pilot relief cartridge valve designed with back-to-back check valves. This configuration enables it to remotely control two other pilot-operated valves or function as a thermal relief for both ends of an actuator. The valve is intended for use with other valves having comparable pilot flows due to its capacity being limited to pilot flow. The integrated check valves prevent cross talk between the two controlled valves, while a single adjustment manages both. It features a check cracking pressure of 15 psi (1 bar), and the pressure at port 3 adds directly to the valve setting, making it suitable for load-holding applications. The term \"thermal relief\" refers to its ability to prevent overpressure caused by fluid thermal expansion. The RBADLAN incorporates Sun's floating style construction, minimizing the risk of internal parts binding due to excessive installation torque or cavity/cartridge machining variations. It fits into a T-11A cavity and has a series 1 capacity of 0.25 gpm (1 L/min). The typical response time is approximately 2 ms, with maximum valve leakage at 110 SUS (24 cSt) being 5 drops/min (0.3 cc/min). For adjustments, five clockwise turns increase the setting; it has a valve hex size of 7/8 in. (22.2 mm) and requires an installation torque of 30 - 35 lbf ft (41 - 47 Nm). The adjustment screw features an internal hex size of 5/32 in. (4 mm), while the locknut hex size is 9/16 in. (15 mm) with a torque requirement of 80 - 90 lbf in (9 - 10 Nm). A Viton seal kit is available under part number: 990011006.
