SUN HYDRAULICS
RBACMCV

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

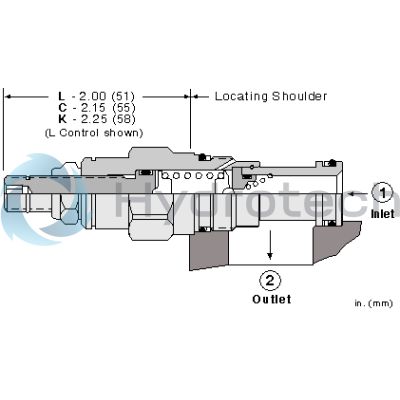

The Sun Hydraulics RBACMCV (RBACMCV) is a direct-acting pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. This cartridge is specifically engineered for use in systems where capacity is limited to pilot flow, making it essential to pair with higher flow valves for optimal performance. Notably, cartridges equipped with EPDM seals are suitable for phosphate ester fluid systems but should not be exposed to petroleum-based fluids, greases, or lubricants, as this can damage the seals. The main stage orifice benefits from protection by a 150-micron stainless steel screen, enhancing its durability and reliability in load-holding applications. This model features corrosion-resistant components and can be configured with external stainless steel or zinc-nickel plated finishes, identified by the suffixes AP or LH respectively. The valve's design incorporates Sun's floating style construction to prevent internal parts from binding due to excessive installation torque or machining variations. With a maximum operating pressure of 5000 psi (350 bar), this valve offers a typical response time of 2 ms and maintains a maximum leakage rate of 5 drops/min at 110 SUS (24 cSt). The RBACMCV allows for adjustable settings throughout its full range using W or Y controls unless otherwise specified with a special setting representing the maximum valve setting. Installation requires careful attention to torque specifications: the valve hex size is 7/8 inch (22.2 mm), requiring an installation torque between 30-35 lbf ft (41-47 Nm). The adjustment screw has an internal hex size of 5/32 inch (4 mm), while the locknut hex size is 9/16 inch (15 mm) with a torque specification of 80-90 lbf in (9-10 Nm). This cartridge weighs approximately .30 lb (.15 kg) and uses Viton seal kits identified by part number 990010006.
