SUN HYDRAULICS
RBAAOWN

***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***

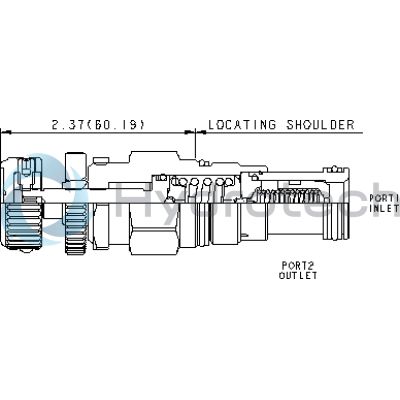

The Sun Hydraulics RBAAOWN (RBAAOWN) is a direct-acting, pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. This cartridge valve is specifically engineered for applications where capacity is limited to pilot flow and is ideal for use in load-holding scenarios. It features a main stage orifice protected by a 150-micron stainless steel screen, ensuring durability and reliability. The valve's design allows back pressure on the tank port (port 2) to be directly additive to the valve setting at a 1:1 ratio, enhancing its adaptability in various systems. The RBAAOWN model can be configured with EPDM seals, making it suitable for systems using phosphate ester fluids while cautioning against exposure to petroleum-based substances that could damage the seals. Additionally, corrosion-resistant options are available, identified by model code suffixes AP or LH, featuring external stainless steel or zinc-nickel plated components respectively. The cartridge incorporates Sun's floating style construction to minimize internal part binding due to excessive torque or machining variations. This Series 2 cartridge has a capacity of 0.5 gpm (2 L/min) and can operate at a maximum pressure of 5000 psi (350 bar), with a typical response time of 2 ms. It boasts minimal leakage rates and offers adjustable settings through its W or Y controls, providing flexibility in application-specific configurations. The valve's installation specifications include a hex size of 1-1/8 inches and an installation torque range of 45-50 lbf-ft (61-68 Nm). With its robust design and versatile capabilities, the Sun Hydraulics RBAAOWN serves as an efficient solution for controlling hydraulic pressure in demanding environments.
