SUN HYDRAULICS
RBAAOCN
$99.50 USD
Tags:
- SUN HYDRAULICS
- Material:RBAAOCN
- Model:RBAA-OCN
- Summary:Cartridge
Quantity in stock: 0
***Disclaimer: The following summary contains information gathered from various sources such as product descriptions, technical specifications and catalogs. While efforts have been made to provide accurate details, inaccuracies may occur. It is advised to verify all information by contacting Sun Hydraulics directly.***
The Sun Hydraulics RBAAOCN (RBAAOCN) is a direct-acting, pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. It is optimized for applications where capacity is limited to pilot flow and should be paired with higher flow valves for optimal performance. The valve features a main stage orifice protected by a 150-micron stainless steel screen, making it suitable for load holding applications. The back pressure on the tank port (port 2) directly adds to the valve setting at a 1:1 ratio. This model can be configured with EPDM seals specifically for systems using phosphate ester fluids; exposure to petroleum-based fluids will compromise these seals. With corrosion-resistant options available, the cartridges can be used in corrosive environments and are identifiable by model code suffixes AP or LH for external stainless steel or zinc-nickel plated components, respectively. The RBAAOCN incorporates Sun's floating style construction, minimizing internal part binding due to excessive installation torque or machining variations. It fits a Cavity T-3A Series 2 and has a capacity of 0.5 gpm (2 L/min) with a maximum operating pressure of 5000 psi (350 bar). The typical response time is approximately 2 ms, with maximum valve leakage at 110 SUS being five drops per minute (0.3 cc/min). Adjustment settings are made through clockwise turns, with up to five turns available for increasing settings. Installation requires specific torque values: valve installation torque is between 45-50 lbf ft (61-68 Nm), while the locknut torque ranges from 80-90 lbf in (9-10 Nm). This model weighs approximately 0.50 lb (0.25 kg) and uses Viton seal kit number 990203006.
The Sun Hydraulics RBAAOCN (RBAAOCN) is a direct-acting, pilot relief cartridge designed to remotely control the pressure setting of other pilot-operated valves. It is optimized for applications where capacity is limited to pilot flow and should be paired with higher flow valves for optimal performance. The valve features a main stage orifice protected by a 150-micron stainless steel screen, making it suitable for load holding applications. The back pressure on the tank port (port 2) directly adds to the valve setting at a 1:1 ratio. This model can be configured with EPDM seals specifically for systems using phosphate ester fluids; exposure to petroleum-based fluids will compromise these seals. With corrosion-resistant options available, the cartridges can be used in corrosive environments and are identifiable by model code suffixes AP or LH for external stainless steel or zinc-nickel plated components, respectively. The RBAAOCN incorporates Sun's floating style construction, minimizing internal part binding due to excessive installation torque or machining variations. It fits a Cavity T-3A Series 2 and has a capacity of 0.5 gpm (2 L/min) with a maximum operating pressure of 5000 psi (350 bar). The typical response time is approximately 2 ms, with maximum valve leakage at 110 SUS being five drops per minute (0.3 cc/min). Adjustment settings are made through clockwise turns, with up to five turns available for increasing settings. Installation requires specific torque values: valve installation torque is between 45-50 lbf ft (61-68 Nm), while the locknut torque ranges from 80-90 lbf in (9-10 Nm). This model weighs approximately 0.50 lb (0.25 kg) and uses Viton seal kit number 990203006.
Direct-acting, pilot relief cartridges are used to remotely control the pressure setting of other pilot-operated valves. Because capacity is limited to pilot flow, these valves should be used with other higher flow valves.
- Main stage orifice is protected by a 150 micron stainless steel screen.
- Suitable for use in load holding applications.
- Back pressure on the tank port (port 2) is directly additive to the valve setting at a 1:1 ratio.
- Cartridges configured with EPDM seals are for use in systems with phosphate ester fluids. Exposure to petroleum based fluids, greases and lubricants will damage the seals.
- W and Y controls (where applicable) can be specified with or without a special setting. When no special setting is specified, the valve is adjustable throughout its full range using the W or Y control. When a special setting is specified, this setting represents the maximum setting of the valve.
- Corrosion resistant cartridge valves are intended for use in corrosive environments and are identified by the model code suffix /AP for external stainless steel components, or /LH for external zinc-nickel plated components. See the CONFIGURATION section for all options. For further details, please see the Materials of Construction page located under TECH RESOURCES.
- Incorporates the Sun floating style construction to minimize the possibility of internal parts binding due to excessive installation torque and/or cavity/cartridge machining variations.

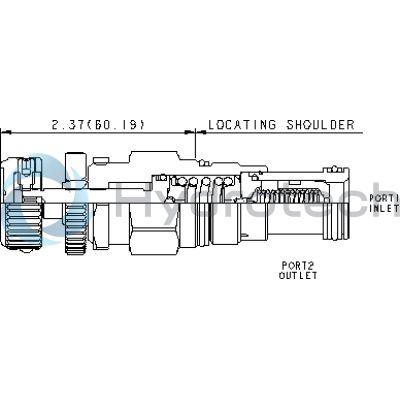

Cavity | T-3A |
Series | 2 |
Capacity | .5 gpm2 L/min. |
Maximum Operating Pressure | 5000 psi350 bar |
Response Time - Typical | 2 ms2 ms |
Maximum Valve Leakage at 110 SUS (24 cSt) | 5 drops/min.0,3 cc/min. |
Adjustment - Number of Clockwise Turns to Increase Setting | 55 |
Valve Hex Size | 1 1/8 in.28,6 mm |
Valve Installation Torque | 45 - 50 lbf ft61 - 68 Nm |
Adjustment Screw Internal Hex Size | 5/32 in.4 mm |
Locknut Hex Size | 9/16 in.15 mm |
Locknut Torque | 80 - 90 lbf in.9 - 10 Nm |
Model Weight | .50 lb0,25 kg |
Seal kit - Cartridge | Viton: 990-203-006 |
Show FAQ
Additional Resources
- Pilot-Operated, Balanced Poppet, Anti Shock Reliefs
- CavitySaver multi-function valves deliver single-cartridge solutions
- 'Soft' Relief Eliminates Pressure Spikes
- Tri-Grip Handknob Now Offered From Sun as a Standard Control Option
- QuickDesign with SmartConnect Offers Drag-and-Drop Schematic Tool
- Sun Introduces 'Hybrid' Valves
- CE/TÜV Certified Pressure Relief Valves
- Pressure Relief and Regulating Cartridge Valve Technical Tips
- Pilot Operated, Balanced Poppet Relief Valves
- Sun Expands Corrosion-Resistant Solutions
- Sun Offers Zinc-Nickel Plating for Corrosion Resistance
- Sun Cartridges with EPDM Seals
- Series 4 PLUS Cartridges Offer Higher Flows with Lower Pressure Losses
- Manufacturing Sun Cartridge Cavities
- Pressure Relief and Regulating Valves
- Sun's Floating Style Screw-In Cartridge
- Units of Measure, Settings, and Conversions
- Cavity Information (S-171) and Tooling
- Sun Model Code Explanation; 999-901-334
- Cartridges: Materials of Construction
- Fluid and Temperature Recommendations
- Performance Data
Notes:
- For Series 2 cartridges configured with an O control (panel mount handknob), a 1.00 in. (25,4 mm) diameter hole is required in the panel.
